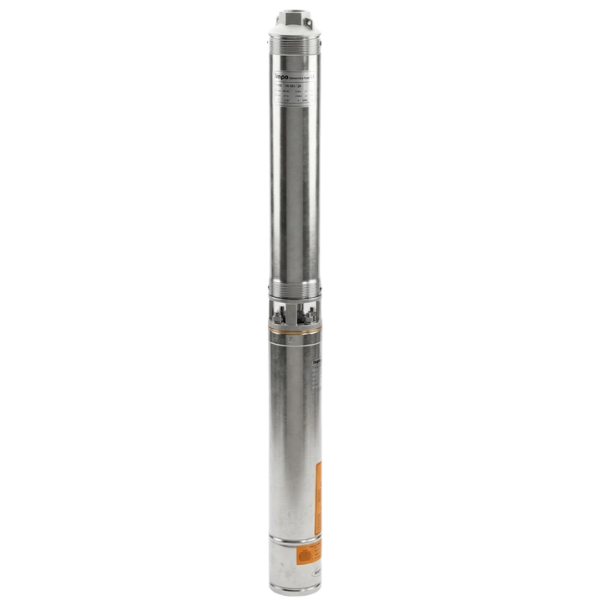

İmpo SK 408/23 Deep Well Submersible Pump 5.5 HP 380V

İmpo SK 408/23 Deep Well Submersible Pump 5.5 HP 380V

Reliable deep well water extraction with high head and stable performance.

The İmpo SK 408/23 Deep Well Submersible Pump stands out for durability among deep well pumping solutions. In addition, it is engineered for safe and efficient extraction of groundwater to the surface. Furthermore, its powerful hydraulic design generates high pressure while the Coverco motor technology maximises energy efficiency. Therefore, it operates fully submerged, delivering quiet and vibration-free performance.

This pump runs on 380V three-phase power and uses a Coverco 4-inch oil-cooled motor with Class B rewindable winding. It reaches a maximum head of 146 metres and a maximum flow of 11.99 m³/h, with a 2-inch discharge. The pump stage measures 945 mm and weighs 7.0 kg, while the motor is 587 mm long and weighs 18.3 kg. Maximum outer diameter is 95 mm including cable guard, and speed is 2900 rpm. It handles liquids from 0°C to 40°C, with a maximum motor water temperature of 35°C, and tolerates up to 25 g/m³ sand and 2 mm particles. Protection is IP68, shaft diameter is 11 mm hexagonal, and minimum liquid level is 600 mm above the suction strainer.

İmpo SK 408/23 Deep Well Submersible Pump — Technical Specifications

Agricultural irrigation projects rely on this pump for consistent water delivery. Moreover, industrial facilities use it for uninterrupted water supply. It also serves groundwater extraction and residential water systems. As a result, it reduces maintenance needs and lowers operating costs across demanding well conditions.

For maximum efficiency and safe water supply, choose the İmpo SK 408/23 Deep Well Submersible Pump. ORFA Industrial supplies worldwide and provides technical support.
