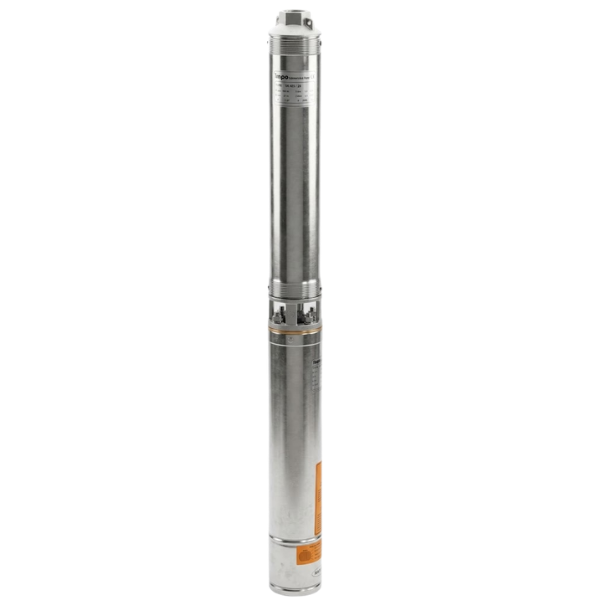

İmpo SK 404/40 Deep Well Submersible Pump 5 HP 380V

İmpo SK 404/40 Deep Well Submersible Pump 5 HP 380V

High-head, energy-efficient water extraction for deep wells and demanding supply systems.

İmpo SK 404/40 Deep Well Submersible Pump stands out for its high head and professional water supply performance. In addition, it delivers underground water safely and efficiently to the surface. Furthermore, its strong hydraulic structure produces high pressure with minimal energy consumption.

The unit runs on 380 V three-phase power and uses a Coverco 4” oil-cooled motor. In addition, it operates fully submerged, producing quiet, vibration-free performance with a maximum head of 268 m and flow of 6.01 m³/h. Furthermore, the pump stages measure 1125 mm and the motor 587 mm, while the maximum outer diameter is 95 mm, including the cable guard. The connection is NEMA-compatible with an 11 mm hexagonal shaft.

İmpo SK 404/40 Deep Well Submersible Pump — Technical Specifications

It serves agricultural irrigation, industrial water supply and residential water systems. In addition, it handles underground water extraction where high pressure is required. Furthermore, with a sand tolerance up to 25 g/m³ and particle tolerance up to 2 mm, it performs reliably in challenging well conditions.

İmpo SK 404/40 Deep Well Submersible Pump delivers maximum efficiency and safe water supply. ORFA Industrial supplies worldwide and provides technical support.
