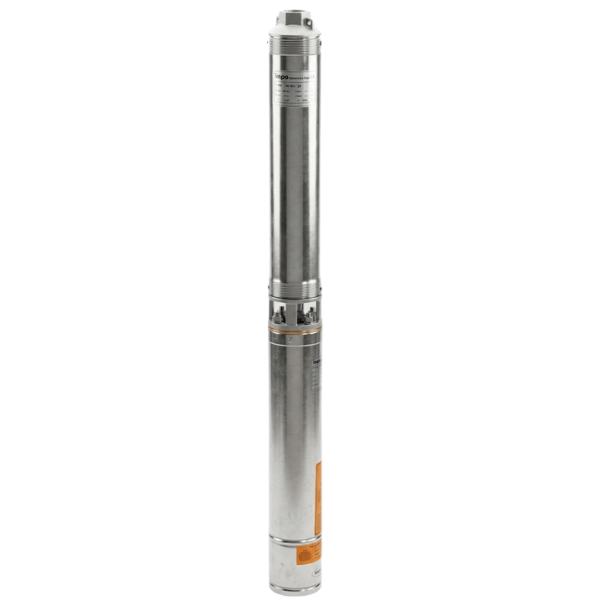

İmpo SK 406/31 Deep Well Submersible Pump 5 HP 380V

İmpo SK 406/31 Deep Well Submersible Pump 5 HP 380V

High-pressure, energy-efficient water extraction for demanding wells.

The İmpo SK 406/31 Deep Well Submersible Pump stands out among water supply solutions for safely and efficiently lifting groundwater to the surface. In addition, its powerful hydraulic design generates high pressure while Coverco motor technology maximises energy efficiency. Furthermore, operating fully submerged, this pump delivers quiet, vibration-free performance even in challenging well conditions.

This pump runs on 380 V three-phase power and features a Coverco 4” oil-cooled motor with Class B insulation. The pump stage measures 1220 mm and the motor 587 mm, with a maximum outer diameter of 95 mm including cable guard. It achieves a maximum head of 185 metres and a maximum flow rate of 9.0 m³/h at 2900 rpm. Moreover, it tolerates up to 25 g/m³ sand and 2 mm particles, with a liquid temperature range of 0°C to 40°C and IP68 protection.

İmpo SK 406/31 Deep Well Submersible Pump — Technical Specifications

Agricultural irrigation projects benefit from the high flow capacity of this pump. In addition, industrial facilities use it for continuous water supply. Furthermore, it serves groundwater extraction and residential water systems. Consequently, it reduces maintenance needs and improves operational efficiency across these sectors.

For maximum efficiency and safe water supply, choose the İmpo SK 406/31 Deep Well Submersible Pump. ORFA Industrial supplies this pump worldwide and provides technical support for your project. Contact us for detailed documentation and selection assistance.
