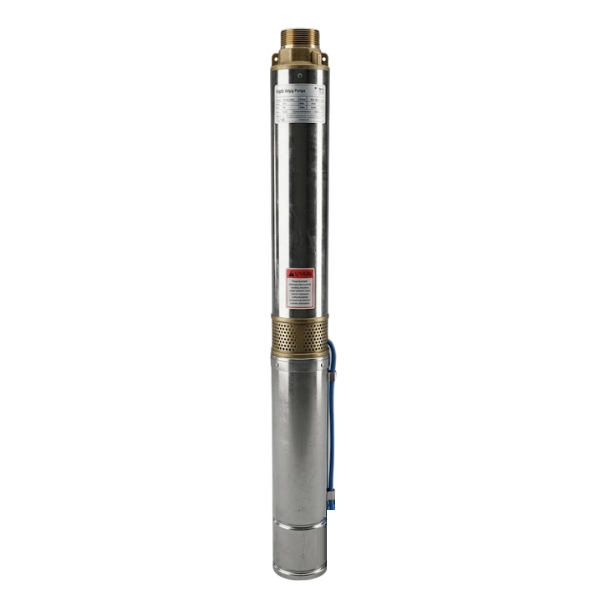

İmpo 4SD4/18 Deep Well Submersible Pump 2 HP 380V

İmpo 4SD4/18 Deep Well Submersible Pump 2 HP 380V

High-head, energy-efficient water extraction for demanding wells.

The İmpo 4SD4/18 Deep Well Submersible Pump stands out for durability and power in professional water supply. In addition, its 2 HP high-efficiency İMPO motor maximises energy savings while running on 380V three-phase power. Therefore, it delivers quiet performance fully submerged and maintains stable operation in tough well conditions.

This pump runs at 2900 RPM and features a 4-inch oil-cooled three-phase motor with IP68 protection. It can produce a maximum head of 127 metres and a maximum flow rate of 6.0 m³/h. The discharge outlet is 1 1/4 inch. Furthermore, the pump stage is 780 mm long, 98 mm in maximum outer diameter, and weighs 6.1 kg. It handles liquid temperatures from 0°C to 40°C and tolerates up to 50 g/m³ of sand. The motor is Class B rewound, has a voltage tolerance of ±10%, and allows up to 20 starts per hour. It also withstands a maximum axial load of 2500 N.

İmpo 4SD4/18 Deep Well Submersible Pump — Technical Specifications

Agricultural irrigation systems rely on this pump for high-pressure water delivery. In addition, municipal drinking water boreholes use it for dependable supply. Industrial plants employ it for process water transfer, while construction sites depend on it for water evacuation. Consequently, it suits any application that requires continuous, efficient water management.

For professional water management and maximum efficiency, choose the İmpo 4SD4/18 Deep Well Submersible Pump. ORFA supplies worldwide and provides technical support for every installation. Contact us for pricing and availability.
