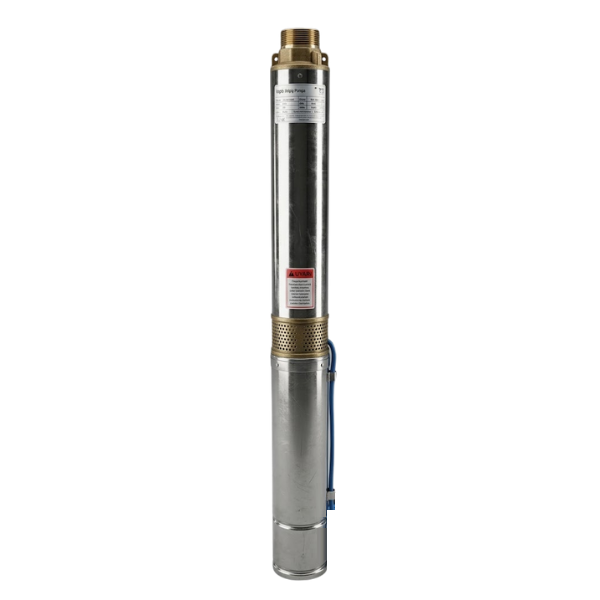

İmpo 4SD10/18 Deep Well Submersible Pump 4 HP 380V

İmpo 4SD10/18 Deep Well Submersible Pump 4 HP 380V

Reliable high-flow water extraction for continuous deep well operation.

The İmpo 4SD10/18 Deep Well Submersible Pump stands out among water supply solutions with its high flow performance. In addition, its 4 HP İmpo motor technology maximises energy efficiency. Therefore, this three-phase unit delivers quiet operation fully submerged in water. Furthermore, it remains stable under demanding well conditions and supports long service life.

The pump uses an İMPO FR 4” S4 series oil-cooled motor rated 4 HP or 3 kW at 380 V three-phase. Moreover, it achieves a maximum head of 111 metres and a maximum flow of 12.6 m³/hour. The discharge outlet is 2 inch, and the NEMA-compliant shaft end and flange ensure correct alignment. Its operating speed is 2900 rpm, with IP68 protection and Class B rewoundable insulation. Liquid temperature ranges from 0°C to 40°C, while maximum motor water temperature is 35°C.

İmpo 4SD10/18 Deep Well Submersible Pump — Technical Specifications

Agricultural irrigation projects rely on this pump to meet high flow demand. In addition, industrial facilities use it for process water distribution and uninterrupted supply. Municipal water supply and infrastructure projects also benefit from its robust construction. Furthermore, residential use, farmhouses and farms depend on it for dependable water extraction. Consequently, it reduces maintenance costs and improves operational efficiency across these sectors.

The İmpo 4SD10/18 Deep Well Submersible Pump provides safe and efficient performance for any water extraction requirement. ORFA Industrial supplies this pump worldwide and provides technical support for selection and installation.
