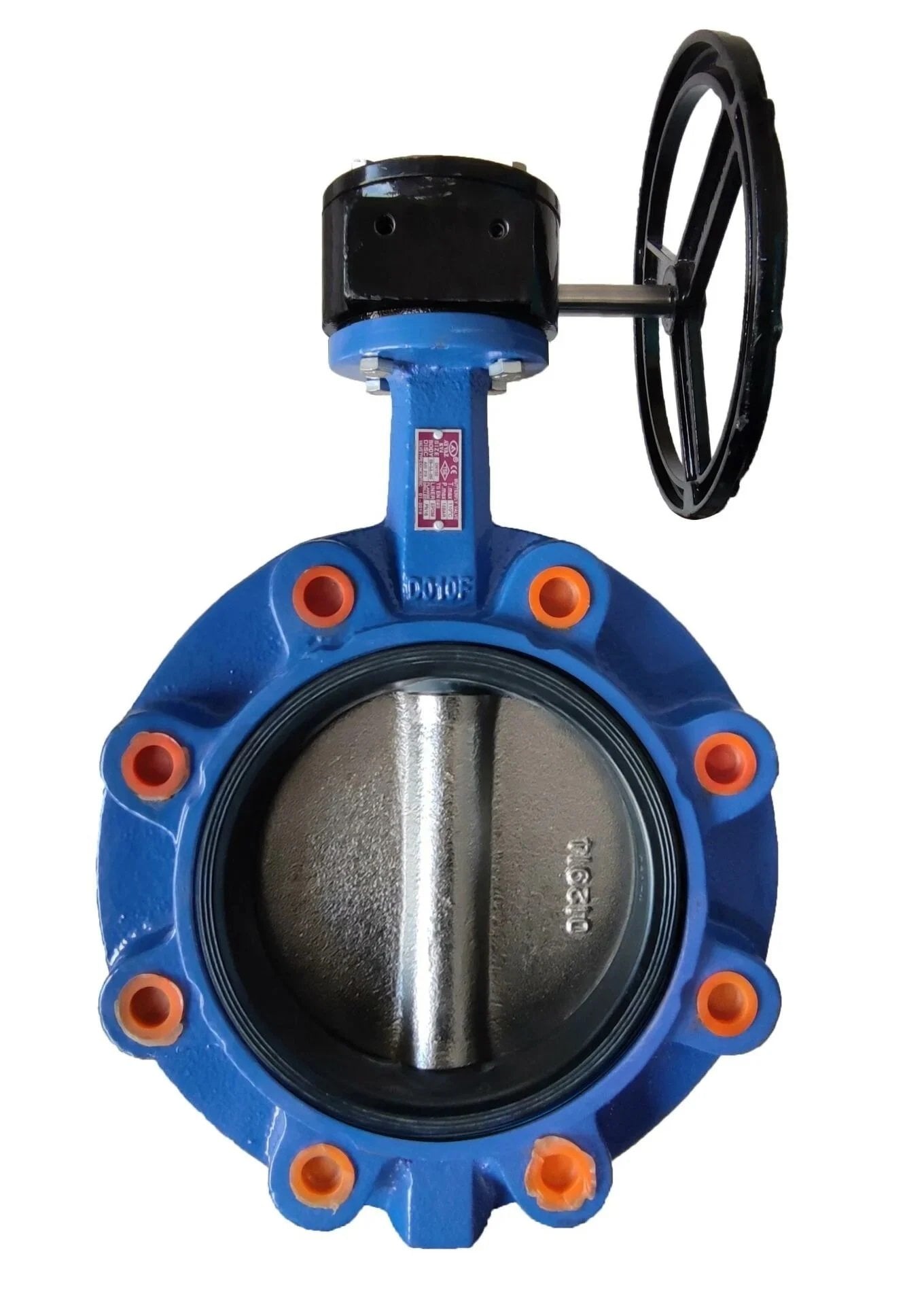

AYVAZ KV-8 Lug Type Gear Operated Butterfly Valve DN200
Reliable large-diameter flow control with a gear operated actuator and tight H-EPDM sealing.
The AYVAZ KV-8 Lug Type Butterfly Valve DN200 provides dependable flow control and sealing in industrial pipelines. In addition, its GG-25 cast iron body and GGG40.3 nickel-plated ductile iron disc deliver high durability. Furthermore, the gear operated actuator makes it easy to operate in large-diameter piping systems.
The valve works on a disc that rotates around a shaft fixed to the body. When the disc is fully open, flow passes freely; when closed, full sealing is achieved. Moreover, the H-EPDM gasket provides excellent performance between the metal disc and the elastic sealing element. Technical data include an AISI 420 stainless steel shaft, H-EPDM gasket, DN200 connection size, and a maximum operating temperature of 130 °C. Consequently, it withstands a PN16 pressure class and 16 bar operating pressure.
AYVAZ KV-8 Lug Type Butterfly Valve — Technical Specifications
This valve serves a wide range of industries, from HVAC systems to water treatment plants, mining, and shipbuilding. In particular, it offers reliable solutions for fire-fighting lines and the chemical industry. Additionally, it performs effectively in water, seawater, wastewater, gas, dust, and air lines.
Key Advantages
- Lug type connection allows easy installation and maintenance.
- Gear operated actuator provides comfortable and safe use in large-diameter lines.
- H-EPDM gasket ensures excellent sealing performance with the metal disc.
Applications
- Heating, ventilation, and air conditioning (HVAC) systems
- Water treatment, distribution, and fire-fighting plants
- Mining, shipbuilding, and chemical industries
In conclusion, the AYVAZ KV-8 Lug Type Butterfly Valve DN200 delivers reliable flow control and long service life in industrial facilities. ORFA Industrial has supplied this product as an authorized distributor since 1985. ORFA supplies worldwide and provides technical support for orders and inquiries.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
