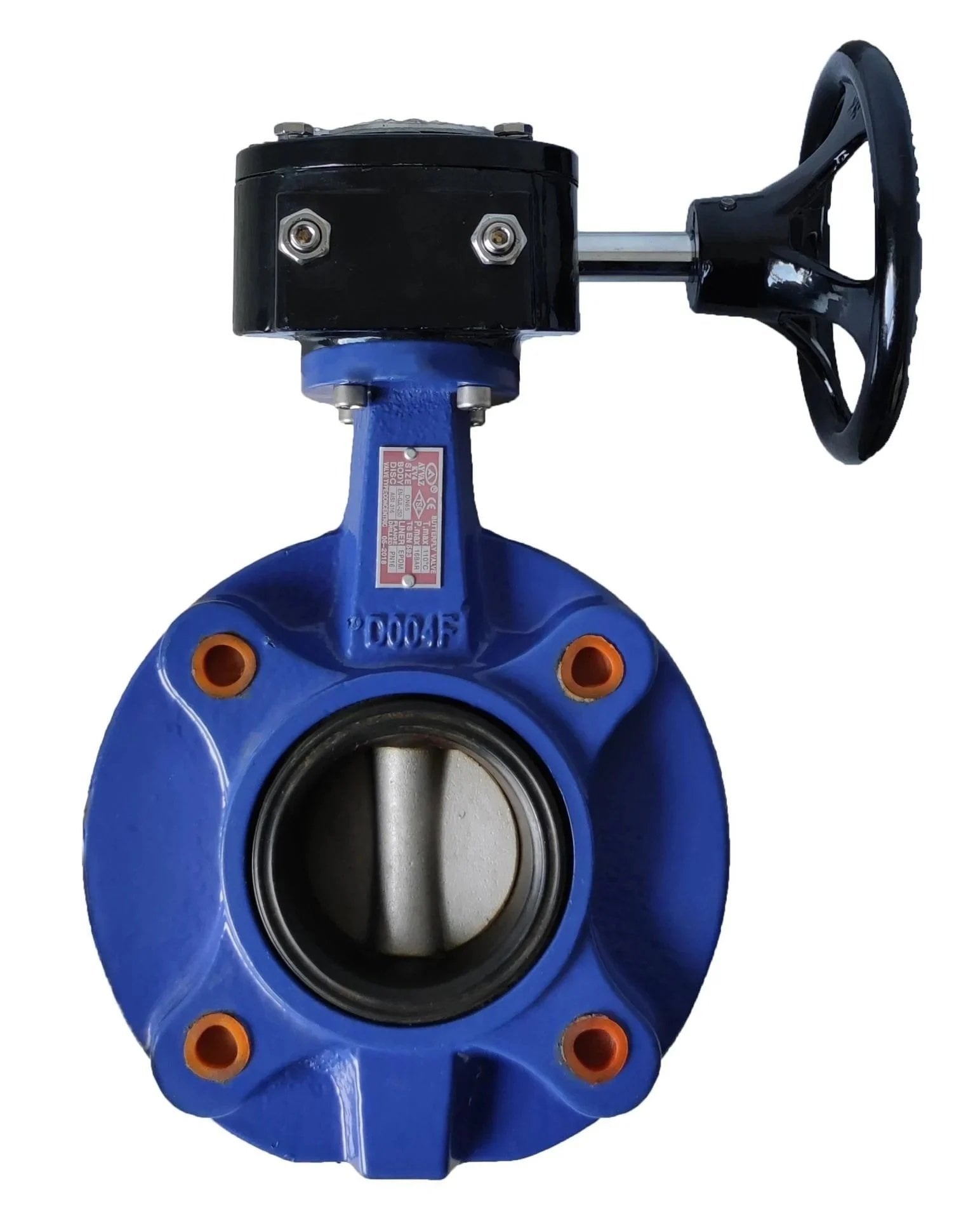

AYVAZ KV-4 Gear Operated Lug Type Butterfly Valve DN400
Compact, precisely gear-operated flow control built for large-diameter industrial lines.
The AYVAZ KV-4 Lug Type Butterfly Valve is an ideal choice for fluid control in industrial facilities. With its DN400 nominal diameter, in addition, it performs effectively on large-diameter lines. Furthermore, the gear operated actuator allows the valve to open and close precisely. Moreover, the compact body design offers easy installation and reduces maintenance requirements.
Its working principle relies on a disc that rotates on a vertical axis inside the body. As the disc turns, consequently, it opens or closes the fluid passage. Sealing takes place between the elastomer gasket and the metal disc. Therefore, minimum pressure loss is achieved in the fully open or fully closed position. Body material is GG25 cast iron in lug type. The shaft is SS420 for DN25–DN300 and SS431 for DN350–DN600. For DN300 and above, horizontal installation is recommended. The maximum working temperature is 130°C.
AYVAZ KV-4 Lug Type Butterfly Valve — Technical Specifications
It is widely used in HVAC systems and water treatment plants. In addition, it is preferred in the mining industry, shipbuilding, and fire extinguishing lines. In this context, it is compatible with various fluids such as water, seawater, gas, and wastewater. Moreover, with a maximum operating temperature of 130°C, it works safely in heating applications as well.
Key Advantages
- GG25 cast iron body and AISI316 stainless steel disc for high durability
- Gear operated actuator enables easy and precise use at large diameters
- Elastomer gasket provides sealing and insulation at the pipe flange simultaneously
Applications
- Heating, ventilation, and air conditioning (HVAC) systems
- Water treatment plants and distribution networks
- Fire extinguishing systems and shipbuilding applications
As a result, the AYVAZ KV-4 Lug Type Butterfly Valve provides reliable flow control in industrial facilities. ORFA Industrial has supplied this product as an authorized distributor since 1985. ORFA supplies worldwide and provides technical support.
