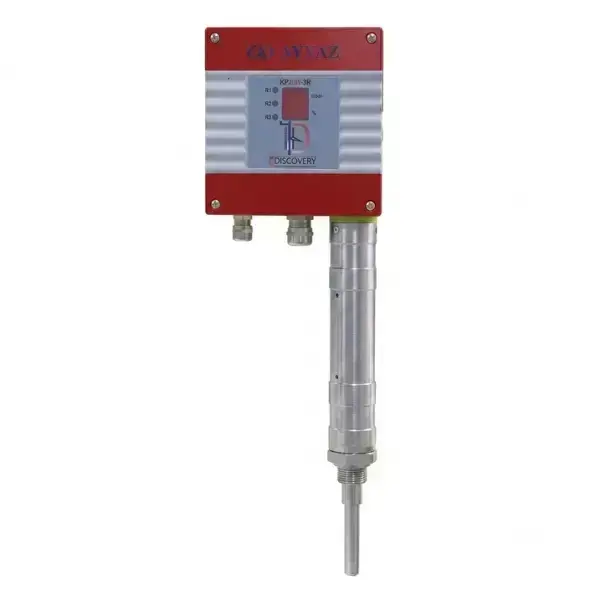

AYVAZ KP2W-3R Capacitive Level Electrode 3/4″ L:1200mm
Continuous, wear-free level monitoring with an integrated display for demanding industrial tanks and boilers.
The AYVAZ KP2W-3R Capacitive Level Electrode delivers continuous smart level measurement for conductive and non-conductive liquids in industrial plants, steam boilers, and chemical storage tanks. In addition, its capacitance-based design tracks liquid height precisely. Moreover, it produces a standard analog signal proportional to the level. Therefore, operators gain reliable real-time data from a single compact device.
The electrode rod and tank wall form a capacitive structure. As the liquid level changes, the electrode monitors the current between the plates. Furthermore, its fully insulated measuring rod has no moving parts, so it avoids mechanical wear. The smart transmitter generates a standard analog output proportional to level. In addition, multiple relay contacts directly trigger automation systems. A display on the housing cover allows on-site monitoring without external units. The wide picofarad range supports high temperature and pressure resistance.
AYVAZ KP2W-3R Capacitive Level Electrode — Technical Specifications
Steam boilers and high-temperature process tanks rely on this electrode for continuous tracking. Shipbuilding and marine applications use it in fuel tanks and brine storage automation. Furthermore, food machinery, glycol tanks, wine cellars, and clean water storage facilities benefit from its stable performance. It also suits special tanks holding hot, sticky, high-viscosity acids and low-conductivity chemical liquids. As a result, it prevents overflow and dry-run risks across many industries.
Key Advantages
- Integrated display on the cover enables monitoring without an external unit.
- No moving parts inside, minimizing mechanical wear and failure risk.
- Flexible calibration for lower and upper limit points directly in the field.
- Advanced relay management connects directly to alarm and safety circuits.
- Aluminum injection housing resists impacts and harsh ambient conditions.
Applications
- Steam boilers and high-temperature industrial process tanks
- Shipbuilding and marine fuel tanks, brine storage automation
- Food machinery, glycol tanks, wine cellars, and clean water storage
- Special tanks for hot, sticky, high-viscosity acids and low-conductivity chemicals
The AYVAZ KP2W-3R Capacitive Level Electrode provides continuous, accurate level monitoring that eliminates overflow and dry-run risks in industrial storage and boiler operations. ORFA Industrial supplies this model worldwide and provides technical support for selection and integration.
