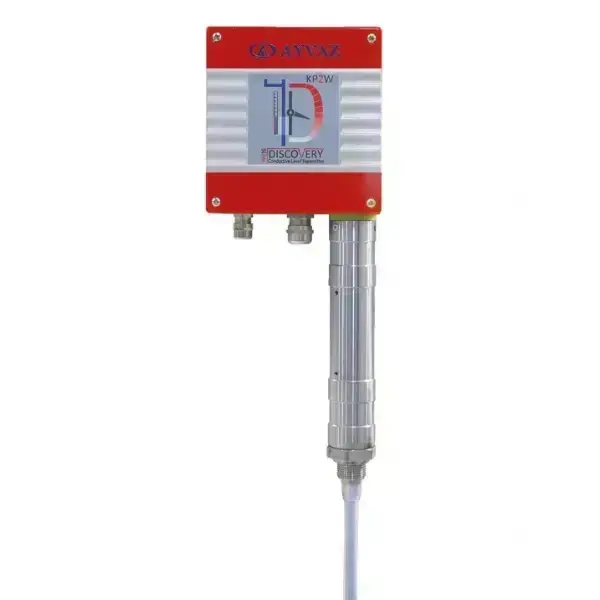

Ayvaz KP-2W Capacitive Level Electrode 3/4″ L:2000mm
Continuous, wear-free level measurement for demanding industrial tanks and boilers.
The Ayvaz KP-2W Capacitive Level Electrode provides continuous smart level measurement in conductive and non-conductive liquids. In addition, it operates on the capacitance principle, using the electrical capacitance between the electrode rod and the tank wall. Therefore, it produces a standard analog output signal proportional to the liquid level.
The measurement mechanism tracks current flow between the plates as the liquid height changes. Moreover, an electronic filtering design reduces linearity errors from stray fields, inductive reactance, and conductivity effects. The unit has no moving parts, so it resists mechanical wear. Its aluminium injection housing and stainless steel body withstand high temperature and pressure. It supports two-wire loop-powered connection and is calibrated easily from the lower and upper points.
Ayvaz KP-2W Capacitive Level Electrode — Technical Specifications
This electrode is used for continuous monitoring in steam boilers and high-temperature process tanks. Furthermore, it serves shipbuilding and marine applications, including fuel tanks and brine storage automation. It also suits food machinery, glycol tanks, wine cellars, and clean water storage systems. Consequently, it is a preferred solution for hot, sticky, high-viscosity acids and low-conductivity chemical liquids.
Key Advantages
- High measurement accuracy converts dielectric changes into an immediate signal
- No moving parts, so there is no mechanical wear or failure risk
- Withstands high temperature and high pressure in boilers
- Fast two-wire loop-powered connection for easy installation
- Advanced filtering minimises linearity errors from conductivity
Applications
- Steam boilers and high-temperature process tanks
- Shipbuilding, marine fuel tanks and brine storage automation
- Food machinery, glycol tanks, wine cellars and clean water storage
- Tanks for hot, sticky, high-viscosity acids and low-conductivity chemicals
Choose the Ayvaz KP-2W Capacitive Level Electrode to eliminate overflow and dry-run risks in your tanks. ORFA Industrial supplies worldwide and provides technical support for your installation.
