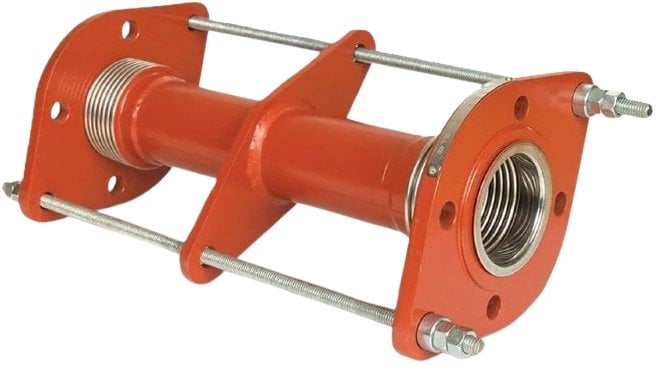

AYVAZ DLTKF-50 Limit Rod Type Expansion Joint DN100
Protects pipe lines from stress, rupture and deformation under extreme temperature and structural movement.
The AYVAZ DLTKF-50 Limit Rod expansion joint DN100 safely protects your pipe lines against stress, rupture and deformation. In addition, its double-bellows design effectively dampens expansion, contraction and ground movement. Moreover, it safely absorbs axial, lateral and angular rotation.
The limit rod mechanism stabilizes the intermediate piece during building settlement or sudden loading. Stainless steel bellows are produced to DIN17440. The rotating flanged connection is made of St 37.2 carbon steel, and the limit rod uses the same high-strength steel. Design pressure is 16 bar (PN16) with a temperature range of -196 °C to +600 °C depending on material structure. Standards: EJMA & DIN2401 compliant.
AYVAZ DLTKF-50 Limit Rod — Technical Specifications
This expansion joint works reliably at building dilatation points, in underground and above-ground pipe lines. Furthermore, it is widely used in overhead installations, infrastructure projects and energy facilities. In addition, it offers flexibility and durability in water, steam, gas and various fluid lines. Consequently, it is preferred at critical points of industrial plants.
Key Advantages
- Double-bellows structure dampens axial, lateral and angular movement
- Limit rod mechanism stabilizes the intermediate piece under sudden loading
- St 37.2 carbon steel connection and stainless steel bellows ensure long service life
Applications
- Building dilatation points and lines with structural movement
- Underground and above-ground pipe installations and infrastructure projects
- Energy facilities, industrial plants and process lines
In conclusion, the AYVAZ DLTKF-50 Limit Rod expansion joint DN100 is a flexible and robust solution that safely protects your pipe lines. ORFA Industrial supplies worldwide and provides technical support for orders and engineering queries.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
