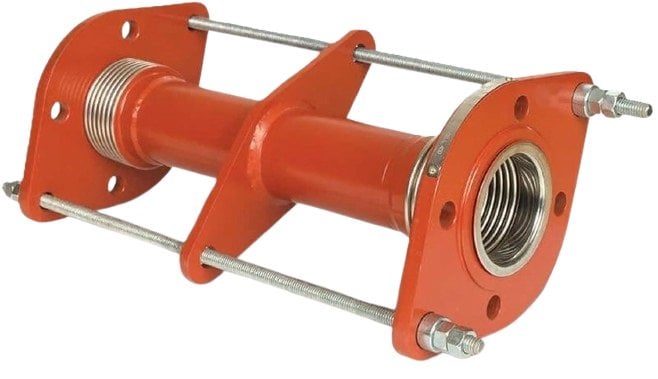

AYVAZ DLTKF-50 Limit Rod Type Expansion Compensator DN300
Absorbs axial, lateral and angular pipeline movement while the limit rod keeps the middle pipe stable under sudden loads.
AYVAZ DLTKF-50 Expansion Compensator removes stress and rupture risk from your pipeline systems. In particular, its double-bellows design effectively damps axial, lateral and angular movement. Moreover, the limit rod mechanism stabilizes the intermediate pipe under sudden loading. Furthermore, the DN300 nominal diameter brings flexibility to large-diameter lines.
The bellows is made of stainless steel to DIN17440. The rotating flanged connection is manufactured from St 37.2 carbon steel, and the limit rod uses the same material to increase durability. Consequently, the assembly operates safely between -196 °C and +600 °C, depending on the material structure. Design pressure is 16 bar (PN16), and the unit complies with EJMA and DIN2401.
AYVAZ DLTKF-50 Expansion Compensator — Technical Specifications
This compensator is widely used at building expansion points and in underground pipelines. It is effective in water, steam and gas lines at energy facilities and industrial plants. In addition, it provides a reliable solution for above-ground installations and infrastructure projects. Therefore, it successfully absorbs stresses caused by ground movement and thermal expansion and contraction.
Key Advantages
- Double-bellows structure damps axial and lateral movement
- Limit rod mechanism keeps stability under sudden loading
- Stainless steel bellows and carbon steel connections ensure long service life
Applications
- Building expansion points and underground pipelines
- Energy facilities and industrial plant process lines
- Water, steam and gas flow lines
As a result, the AYVAZ DLTKF-50 Expansion Compensator delivers maximum protection and flexibility in your pipelines. ORFA Industrial has supplied authorized distribution, technical support and fast procurement since 1985. Contact us for a solution matched to your project. ORFA supplies worldwide and provides technical support.
