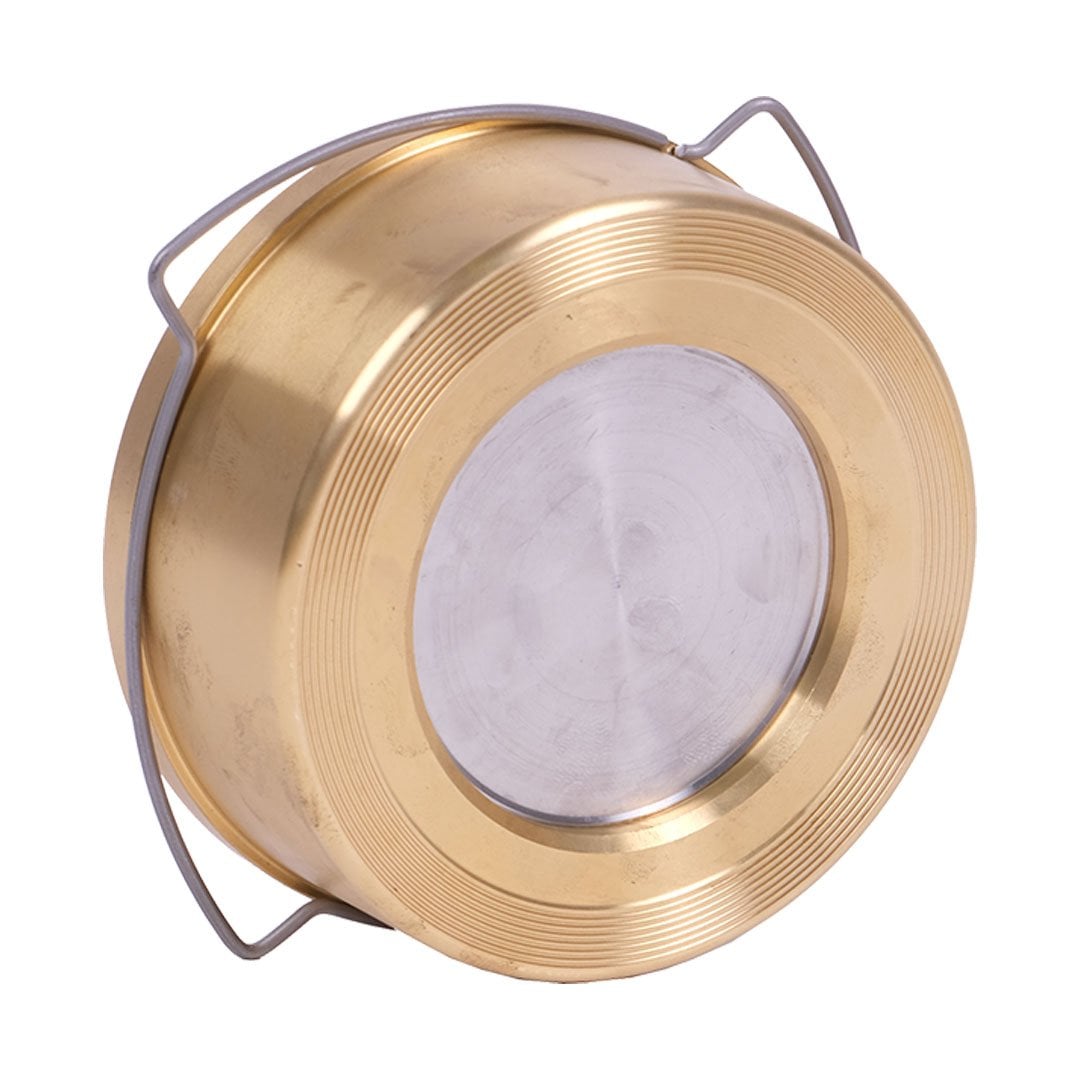

VALFTEK Brass Wafer Check Valve DN65 PN16

VALFTEK Brass Wafer Check Valve DN65 PN16

Compact wafer design delivers 100% backflow prevention with minimal pressure loss.

The VALFTEK Brass Wafer Check Valve provides reliable backflow prevention for industrial piping with DN65 nominal diameter and PN16 pressure class. In addition, its brass body and metal-to-metal sealing technology deliver excellent performance in demanding fluids such as hot water, superheated water and compressed air. Therefore, its compact wafer structure fits easily into tight spaces and raises overall system safety.

A spring-loaded disc opens with the flow direction and closes rapidly under reverse pressure, achieving 100% backflow prevention. Moreover, the metal-to-metal seal requires no elastomer gasket, so it keeps sealing performance even during temperature and pressure fluctuations. Consequently, the -10°C to +120°C working temperature range covers a wide variety of applications. The body and disc are both brass (Ms58), the standard is TS EN 12334, and the approximate weight is 1.2 kg.

VALFTEK Brass Wafer Check Valve — Technical Specifications

This valve is used in heating systems to stop backflow in hot water and superheated water circuits. Furthermore, it ensures safe operation at compressor outlets on compressed air lines. In addition, it provides protection at pump stations in water distribution networks. As a result, it suits HVAC, compressed air and water supply installations.

In conclusion, the VALFTEK Brass Wafer Check Valve offers an ideal solution for reliable flow control in your industrial piping. ORFA Industrial has supplied this product as an authorized distributor since 1985. ORFA supplies worldwide and provides technical support and pricing on request.
