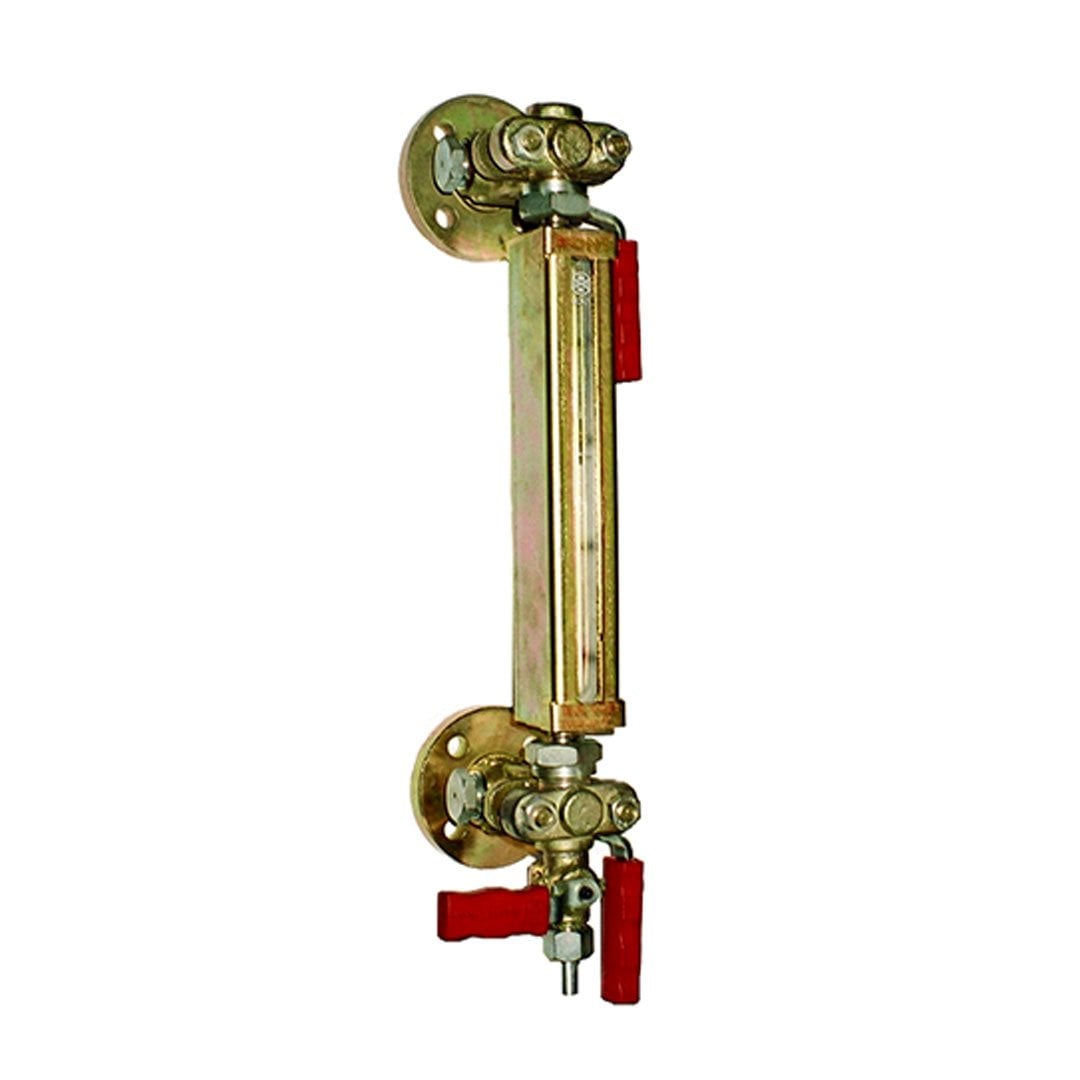

VALFTEK BR-14B Reflex Glass Level Gauge PN16 VII
High-strength reflex glass technology for safe and continuous liquid level visibility in demanding industrial conditions.
The VALFTEK BR-14B Reflex Glass Level Gauge PN16 VII provides high-strength visibility for reliable liquid level management in pressurized vessels and tanks. In addition, its reflex glass technology makes the liquid phase appear dark while the gas phase appears bright. Therefore, it delivers safe monitoring especially in steam boilers and power plants. Moreover, its PN16 pressure rating withstands pressures up to 16 bar. Furthermore, the 400 mm flange-to-flange distance allows easy adaptation to standard connections.
The body is made of cast iron or steel, so it offers long service life under harsh industrial conditions. Each unit is mounted with a tightening torque of 30 Nm, and the total weight is 12.20 kg. Technical specifications include a PN16 nominal pressure, 400 mm flange-to-flange distance, 293 mm body length (B), 258 mm observation distance (V), 280 mm glass length (G), 10 mm gauge passage diameter and G11 cock group type.
VALFTEK BR-14B Reflex Glass Level Gauge — Technical Specifications
This gauge is widely used in steam boilers, power plants and petrochemical facilities. In addition, water treatment systems and the food industry prefer this device. Consequently, it is ideal for any plant that needs to monitor liquid level continuously and safely. Furthermore, its ease of maintenance reduces operating costs.
Key Advantages
- Reflex glass technology provides clear separation of liquid and gas phases
- PN16 pressure rating enables safe use under demanding conditions
- Easily cleanable glass structure requires low maintenance
- High-strength body in cast iron or steel ensures long service life
Applications
- Level monitoring in steam boilers and pressurized vessels
- Safe control in water and wastewater treatment plants
- Process safety in petrochemical and chemical industries
- Level monitoring in food industry systems
In conclusion, the VALFTEK BR-14B Reflex Glass Level Gauge PN16 VII is an ideal solution for reliable liquid level management in industrial facilities. ORFA Industrial supplies worldwide and provides technical support. Contact us for technical support and orders.
