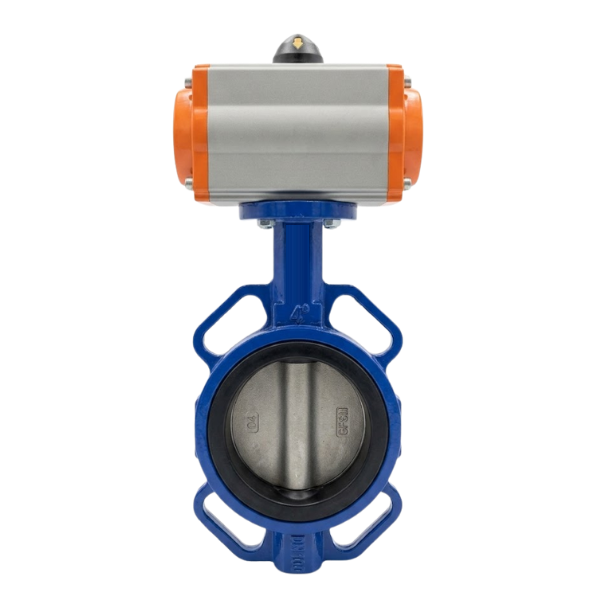

Pneumatic Actuated Wafer Type Butterfly Valve PN16 DN100

Pneumatic Actuated Wafer Type Butterfly Valve PN16 DN100

Fast pneumatic shutoff with corrosion-resistant internals for demanding flow lines.

The Bundor Actuated Butterfly Valve optimizes flow control in industrial automation systems, moreover its wafer connection and double-acting pneumatic drive stand out immediately. With a DN100 nominal diameter, this valve provides high strength in demanding fluids, in addition to reliably PN16-rated service.

A ductile iron body carries a CF8M (AISI 316 stainless steel) disc, an EPDM seat and an AISI 420 stainless steel stem. Therefore the valve seals completely while resisting aggressive liquids. It responds instantly to pneumatic signals, and its double-acting aluminum actuator opens and closes within seconds. Face-to-face length is 52 mm, L1 is 114 mm, L2 is 200 mm, disc diameter is 144 mm and PCD is 190.5 mm with four 5/8 inch holes.

Bundor Actuated Butterfly Valve — Technical Specifications

Chemical and food industry lines that require a stainless disc rely on this valve, in particular where hygiene and corrosion resistance matter. Furthermore, water treatment plants, HVAC systems, industrial air lines and process automation all use it for automatic control. Shipbuilding and paper industry applications also benefit from its durable construction.

For different sizes and material options of the Bundor Actuated Butterfly Valve, contact ORFA Industrial. ORFA supplies worldwide and provides technical support for uninterrupted, safe flow control.
