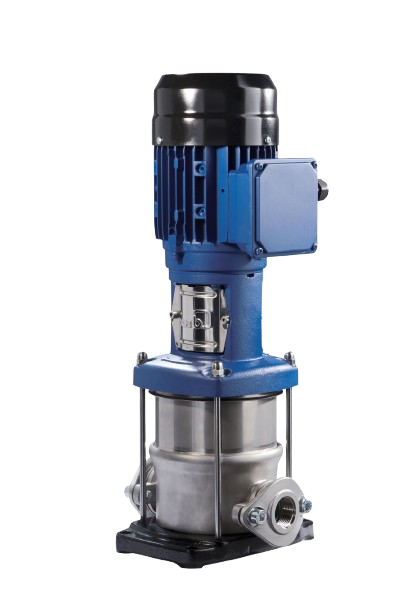

KSB Movitec V 15/7 C Vertical Multistage Pump 2900 rpm
High-pressure liquid transfer in a compact stainless steel design.
The KSB Movitec V 15/7 C Vertical Multistage Pump 2900 rpm is engineered for high-pressure liquid transfer in industrial water distribution and boosting systems. In addition, its AISI 304 stainless steel casing and impeller provide superior corrosion resistance. Moreover, the compact vertical layout fits narrow plant rooms and simplifies installation.
A 7.50 kW motor running at 2900 rpm delivers a maximum head of 90 metres and a maximum flow of 2.40 m³/h (40 l/min). Therefore the pump performs reliably in low-flow, high-head duties. The IE3 motor operates on 400/690 V three-phase 50 Hz supply, and the AISI 431 stainless steel shaft plus mechanical seal ensure leak-free liquid containment. The unit handles liquids from -10°C to +60°C, with IP54 protection, Class F insulation and S1 continuous duty.
KSB Movitec V 15/7 C Vertical Multistage Pump — Technical Specifications
Water treatment and filtration units rely on this pump for dependable circulation on chemical injection lines. Furthermore, HVAC systems use it for cooling water transfer. In particular, industrial washing plants and clean water supply systems benefit from its long service life. Consequently, process water boosting stations achieve uninterrupted operating performance.
Key Advantages
- Stainless steel casing and impeller deliver full resistance to corrosion and chemicals
- IE3 premium efficiency motor significantly reduces energy costs
- Compact vertical design allows easy installation in tight spaces
Applications
- Process water circulation and boosting systems
- Water treatment, filtration and chemical injection units
- HVAC and cooling water transfer lines
In summary, the KSB Movitec V 15/7 C Vertical Multistage Pump 2900 rpm is a dependable, efficient solution for industrial liquid management. ORFA supplies worldwide and provides technical support and spare parts as an authorised distributor since 1985. Contact our expert team to evaluate this pump for your project.
