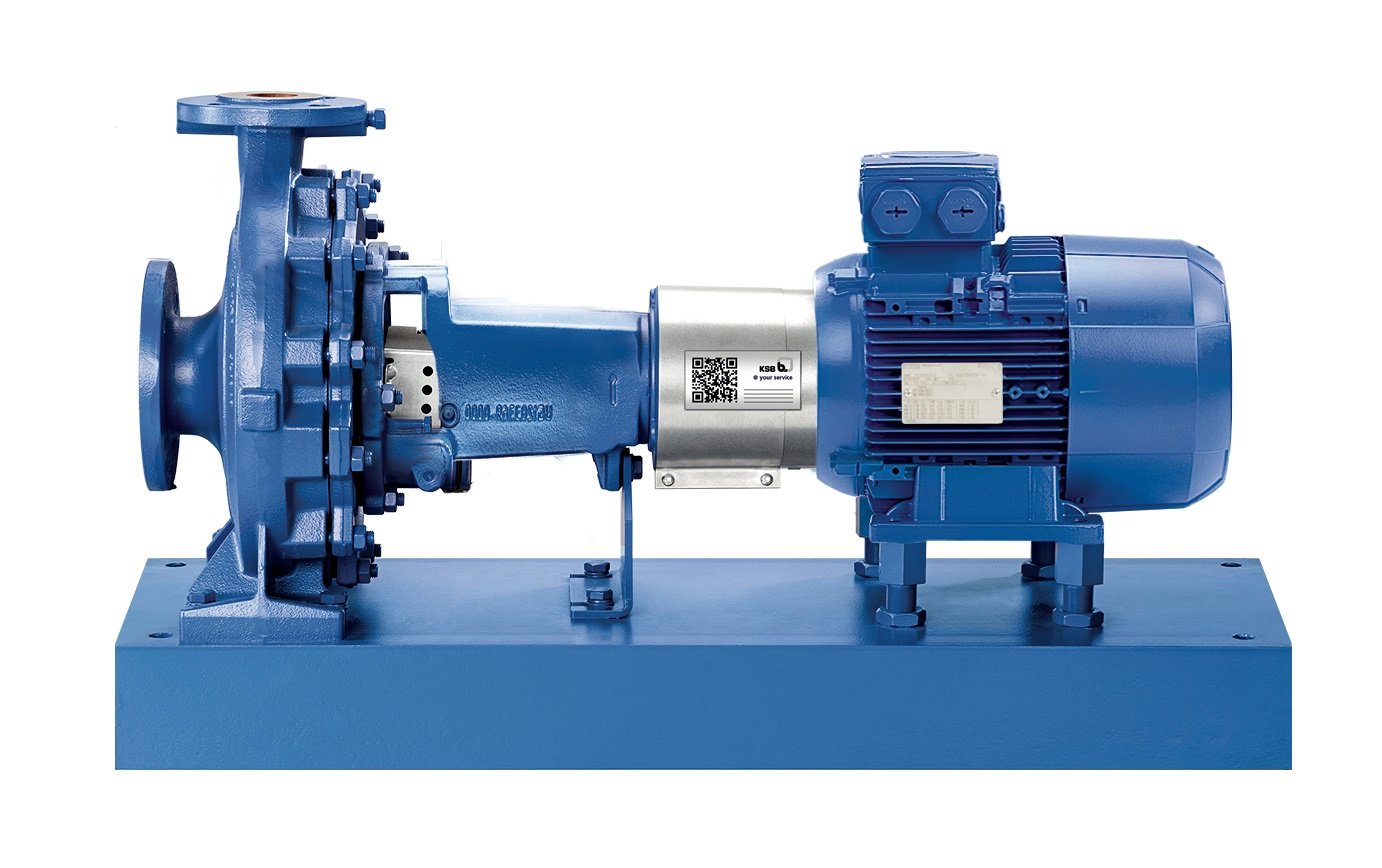

KSB Etanorm 100-080-200 Centrifugal Pump 18.5 kW 2900 rpm
Back pull-out maintenance design keeps your process running without draining the line.
KSB Etanorm 100-080-200 Centrifugal Pump 18.5 kW 2900 rpm delivers high performance in industrial liquid transfer thanks to its horizontal single-stage volute construction. In addition, the back pull-out design allows the motor and impeller to be removed easily while the casing remains in the pipeline. Therefore, maintenance is fast and production downtime is reduced.
The casing is made of grey cast iron JL1040, while the impeller uses tempered steel E335/C45, giving strong corrosion resistance. Moreover, a single mechanical seal Q1Q1X4GG provides sealing, and the wear rings are produced from asbestos-free DPAF material. The 18.5 kW motor draws 35.6 A at 3×380-480 V and carries IP55 protection. Consequently, it operates reliably in demanding environments, with a maximum head of 37 mSS and working pressure up to 16 bar.
KSB Etanorm 100-080-200 Centrifugal Pump — Technical Specifications
This pump suits industrial water transfer systems and fire-fighting lines, where consistent pressure and flow are essential. Furthermore, it performs safely in building services systems (HVAC), water treatment circulation circuits and process cooling loops. In particular, a maximum flow capacity of 200 m³/h matches large-volume applications, while a liquid temperature range of 0 °C to 110 °C adds process flexibility.
Key Advantages
- Back pull-out design enables quick maintenance and low operating downtime
- Grey cast iron casing and tempered steel impeller provide long-lasting corrosion resistance
- MEI ≥ 0.4 energy efficiency lowers operating costs and supports sustainable performance
Applications
- Industrial water transfer systems and process cooling circuits
- Fire-fighting lines and pressurisation stations
- Building services systems (HVAC), treatment and circulation applications
In conclusion, the KSB Etanorm 100-080-200 Centrifugal Pump 18.5 kW 2900 rpm provides reliable and efficient liquid transfer in industrial facilities. In addition, ORFA Industrial has stocked this pump as an authorised distributor since 1985. Moreover, ORFA supplies worldwide and provides technical support for your selection and commissioning needs.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
