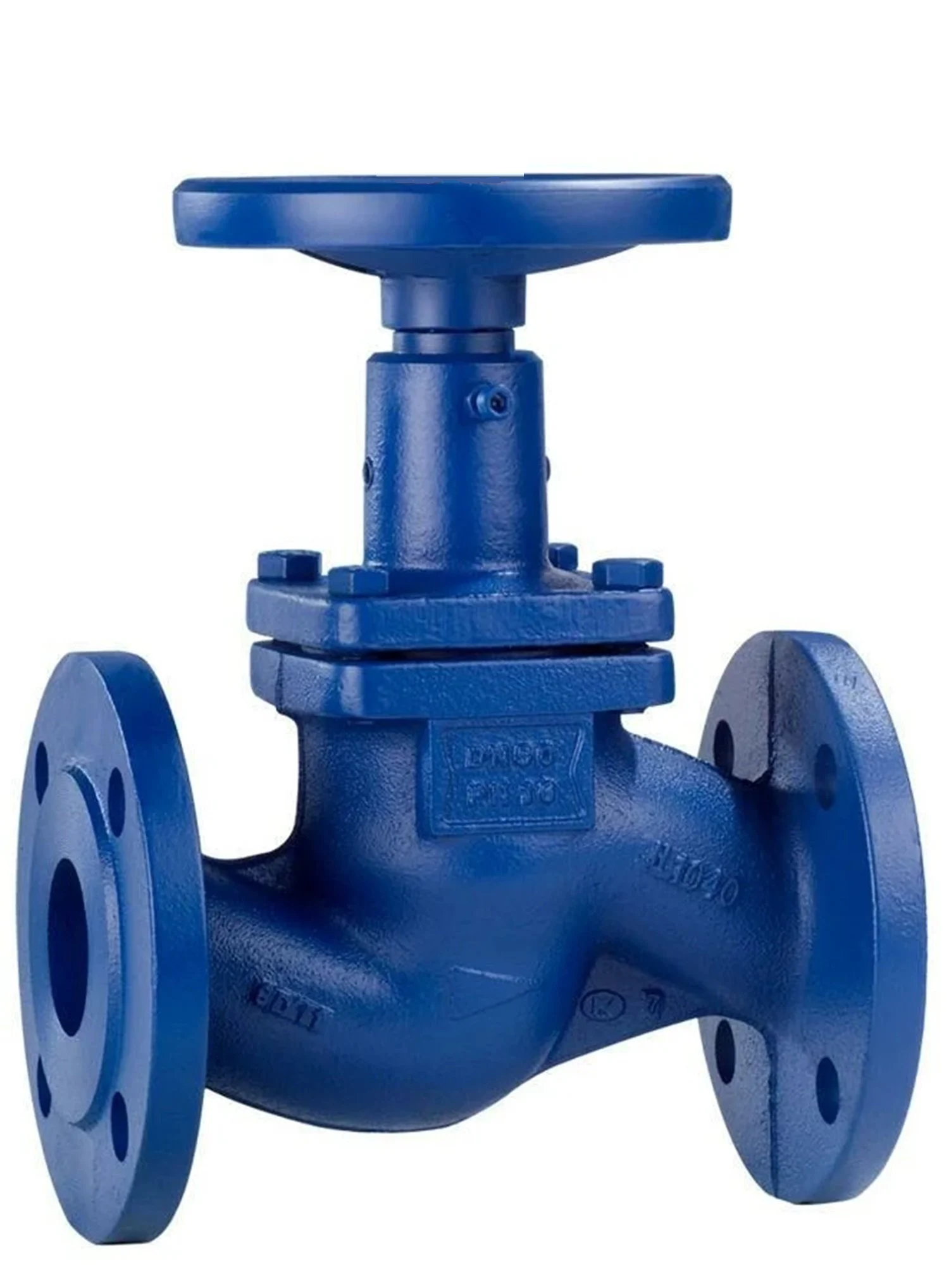

KSB BOA-H Metal Bellows Valve PN25 DN15

KSB BOA-H Metal Bellows Valve PN25 DN15

Zero-leak flow control for high-temperature steam and thermal oil lines.

KSB BOA-H Metal Bellows Valve delivers reliable flow control with zero leakage in steam lines and thermal oil systems. In addition, its GGG40 ductile iron body resists vibration and thermal cracking. Moreover, the PN25 pressure class and DN15 nominal diameter suit applications requiring precise flow regulation.

The metal bellows design eliminates any leakage around the stem, so no steam escapes during operation. Furthermore, the throttling plug system allows extremely fine flow adjustment, therefore improving energy efficiency. The valve works continuously between -10°C and +350°C and fully complies with the German heating system regulation (HeizAnlV). It also carries ATEX certification for safe use in explosive process lines. The body is made of GGG40 ductile iron (EN-GJS-400-LT-18) with flanged connections to ISO 7005-1 PN25, and the unit weighs 3.1 kg.

KSB BOA-H Metal Bellows Valve — Technical Specifications

In particular, steam lines and power plants rely on this valve for dependable high-temperature flow control. The chemical and petrochemical industries choose it for applications in explosive atmospheres. In addition, thermal oil systems and central heating installations benefit from its precise adjustment capability. Operators can easily monitor valve position thanks to the external colour-coded position indicator.

Consequently, the KSB BOA-H Metal Bellows Valve provides reliable flow management in high-temperature and high-pressure installations. As an authorised distributor since 1985, ORFA supplies worldwide and provides technical support for orders and engineering questions.
