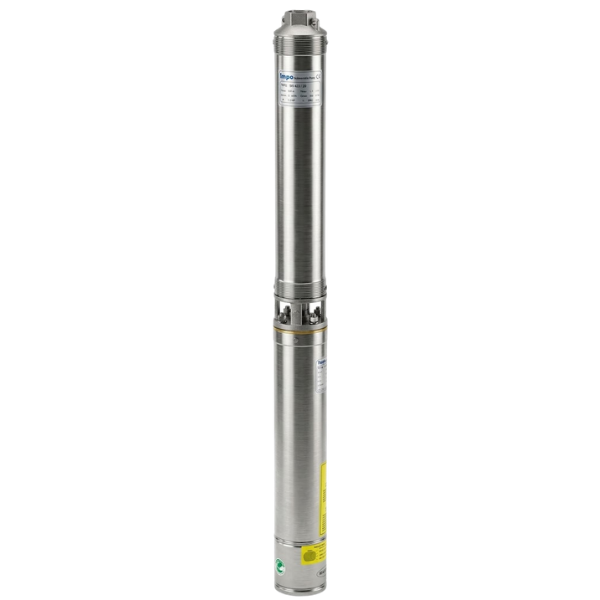

İmpo SK 401/26 Deep Well Submersible Pump with Control Panel 1 HP 220V

İmpo SK 401/26 Deep Well Submersible Pump with Control Panel 1 HP 220V

Reliable deep well water extraction with high head and energy efficiency.

The İmpo SK 401/26 Deep Well Submersible Pump stands out for its durability in professional water supply. Furthermore, its 1 HP motor and 220V monophase operation deliver energy-efficient performance. In addition, it operates silently and without vibration fully submerged.

This pump features a 4-inch oil-cooled monophase motor with Class B insulation. Moreover, it achieves a maximum head of 166 m and a maximum flow rate of 1.80 m³/h. The discharge outlet is 1 1/4 inch, and the maximum outer diameter is 100 mm including cable guard. It operates at 2900 RPM with IP68 protection. The pump stage length is 679 mm and weight 6.5 kg. It handles liquid temperatures from 0°C to 40°C, with a maximum motor water temperature of 35°C. Sand tolerance is up to 25 g/m³ and solid particle tolerance up to 2 mm. The shaft diameter is 11 mm hexagonal, and minimum liquid level is 600 mm above the suction strainer. It allows 20 starts per hour and withstands a maximum axial load of 1500 N. Motor insulation uses non-toxic dielectric oil.

İmpo SK 401/26 Deep Well Submersible Pump — Technical Specifications

This pump is widely used in agricultural irrigation for fields, gardens, and greenhouses. In addition, it supports municipal water supply projects and industrial process water distribution. Furthermore, it serves residential water needs in detached properties. Consequently, it ensures continuous water supply across diverse sectors.

For maximum efficiency and safe water supply, the İmpo SK 401/26 Deep Well Submersible Pump is an ideal choice. ORFA Industrial supplies this pump worldwide and provides technical support.
