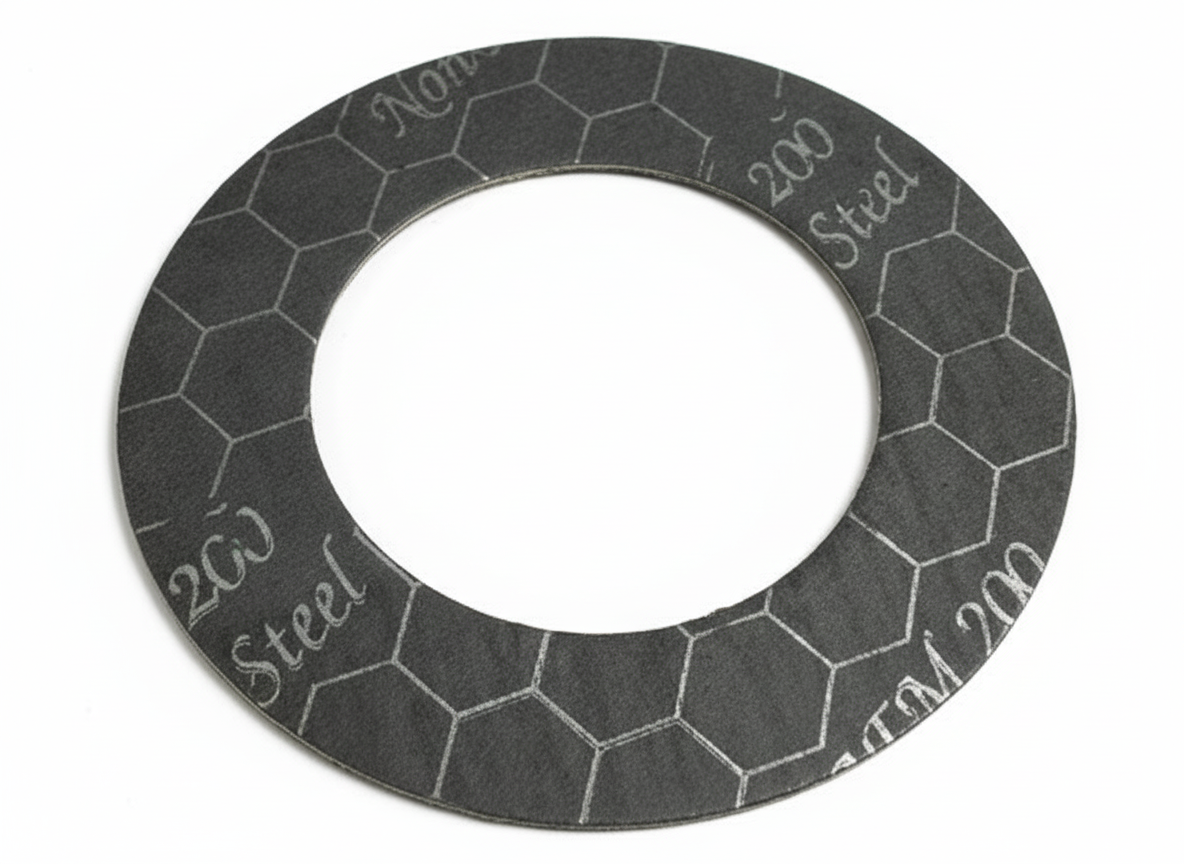

Graphite Wire Reinforced Klingrit Gasket 3 mm DN15
Superior sealing and mechanical strength for industrial flange connections.
Graphite Wire Reinforced Klingrit Gasket 3 mm DN15 is designed to provide sealing in industrial flanged connections. In addition, its DN15 nominal diameter, 22 mm inner diameter, and 50 mm outer diameter ensure full compatibility with standard flanges. Moreover, the 3 mm thickness fills surface gaps during compression, thereby enhancing sealing performance.
The gasket features a stainless steel wire reinforcement that helps it maintain its form under high pressure. It offers a maximum temperature tolerance of 350 °C and a pressure tolerance of 70 bar. Furthermore, the graphite surface resists aggressive chemicals such as acids and alkalis, ensuring long service life. As a result, the wire reinforcement increases mechanical strength, providing sealing assurance even in high-pressure systems.
Graphite Wire Reinforced Klingrit Gasket — Technical Specifications
This gasket operates reliably in challenging environments such as steam lines and hot oil installations. It is particularly suitable for steam boilers and lines, as well as hot water and hot oil systems. Additionally, it is resistant to aggressive media in chemical process plants. Consequently, it is widely preferred in power plants and petrochemical facilities.
Key Advantages
- Stainless steel wire reinforcement maintains form under high pressure
- Graphite surface offers chemical resistance to acids and alkalis
- 3 mm thickness provides optimum deformation during compression
Applications
- Sealing in steam boilers and lines
- Reliable performance in hot water and hot oil installations
- Resistant to aggressive environments in chemical process plants
In conclusion, Graphite Wire Reinforced Klingrit Gasket 3 mm is an ideal solution for sealing flanged connections in industrial facilities. ORFA Industrial supplies worldwide and provides technical support and stock information upon request.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
