AYVAZ Omega V-Flex Weld Neck Expansion Joint L:100mm 6″

AYVAZ Omega V-Flex Weld Neck Expansion Joint L:100mm 6″

Safe expansion and vibration damping under high temperature and pressure.

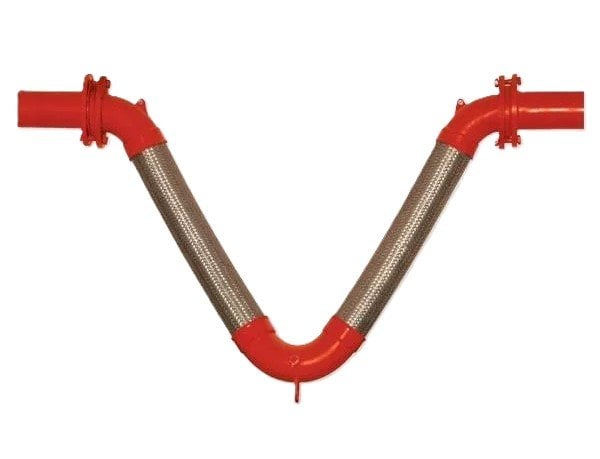

AYVAZ Omega V-Flex Weld Neck Expansion Joint absorbs movements caused by earthquake, settlement or thermal expansion in pipelines. In addition, its double braided hose structure successfully dampens vibration and pressure fluctuations. Therefore, it improves system safety in demanding industrial installations.

The bellows is made of AISI 304 or AISI 316L stainless steel for superior corrosion resistance. The braid is AISI 304 stainless steel, which increases mechanical strength. The weld neck connection is made of St37.2 carbon steel and can be customized. Working temperature ranges from -80°C to +600°C. Standard expansion value is ±1.5° angular movement with axial elongation and compression tolerance. Pressure resistance reaches 175 PSI and 250 PSI.

AYVAZ Omega V-Flex Weld Neck Expansion Joint — Technical Specifications

This expansion joint is frequently preferred in fire circuit lines and building mechanical installations. It provides an effective solution at expansion zones caused by pressure and temperature differences in process lines. It is also safely used in fuel oil tanks and industrial machine outlets. Moreover, FM approval documents compliance with international standards.

In conclusion, the AYVAZ Omega V-Flex Weld Neck Expansion Joint is an ideal solution for industrial installations with its high performance and wide compatibility. ORFA Industrial has supplied this product as an authorized distributor since 1985. ORFA supplies worldwide and provides technical support for selection and pricing.
