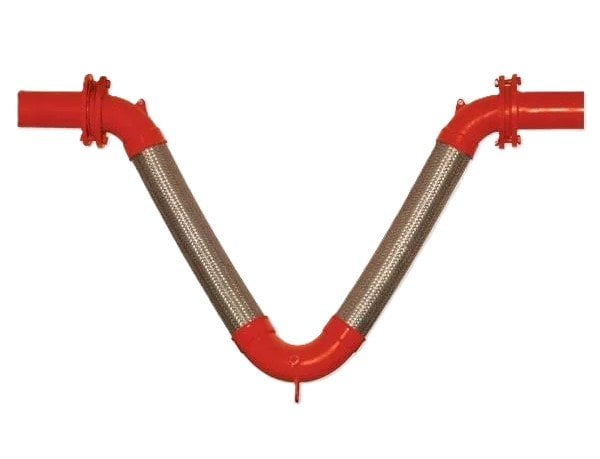

AYVAZ Omega V-Flex Expansion Joint 5″ L:40mm
Protects piping systems from thermal expansion, seismic movement and pressure surges.
The AYVAZ Omega V-Flex Expansion Joint delivers a professional solution for system safety under thermal expansion and seismic movement. In addition, its Omega V-Flex design absorbs axial, lateral and angular movements at the same time. Moreover, the weld-neck connection type eliminates the risk of leakage after installation.
The AISI 316L stainless steel body resists a wide range of chemicals, while the double braided hose construction neutralises vibration-induced stress. In addition, the 5 inch nominal diameter (DN125) and 40 mm effective expansion length suit medium and large piping systems. Furthermore, the -80°C to +600°C operating range supports safe use in steam and process lines. Maximum working pressure is PN25 / 250 Bar, with angular capacity of ±1.5 degrees. The design standard is EN 10123 / FM approved, and the protection class is IP67 (fully watertight).
AYVAZ Omega V-Flex Expansion Joint — Technical Specifications
This product is ideal for industrial steam and high-temperature lines. In particular, it protects process lines in petrochemical and refinery plants, and it secures piping networks in fire suppression systems. Moreover, it manages system movements in seismic regions, therefore preventing structural damage.
Key Advantages
- Absorbs axial, lateral and angular movements simultaneously
- Withstands +600°C for safe operation in high-temperature lines
- Dampens pressure surges and extends pump service life by 15-20 years
Applications
- Expansion management in industrial steam and high-temperature installations
- Vibration damping in petrochemical and refinery process lines
- Piping safety in fire suppression systems and seismic regions
In conclusion, the AYVAZ Omega V-Flex Expansion Joint is an ideal choice for safe expansion management and maximum system life in industrial installations. ORFA supplies worldwide and provides technical support, with this product held in stock as an authorised distributor since 1985.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
