Ayvaz MKSF-30 Unlined Fixed Flanged Expansion Joint PN16 DN150

Ayvaz MKSF-30 Unlined Fixed Flanged Expansion Joint PN16 DN150

Reliable expansion control for high-temperature and high-pressure pipelines.

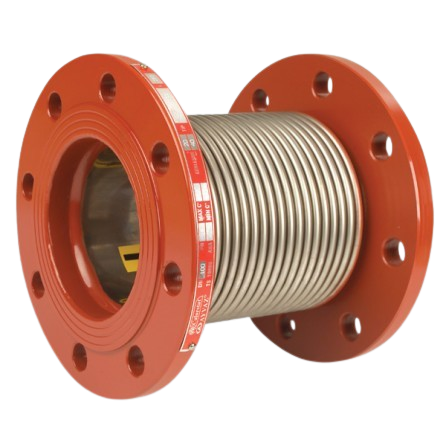

Ayvaz MKSF-30 Unlined Fixed Flanged Expansion Joint absorbs thermal expansion and vibration in pipelines effectively. In addition, its DN150 nominal diameter and 30 mm expansion stroke let it adapt easily to various installations. Furthermore, the stainless steel bellows structure delivers long service life under high temperature and corrosive conditions.

The unlined design reduces flow resistance and lowers overall weight. Moreover, St 37.2 carbon steel flanges increase mechanical durability and maintain system integrity. Therefore, the fixed flanged connection speeds up installation and minimizes leak risk. As a result, the unit works safely across a wide temperature range of -80 °C to +427 °C, with a design pressure of 16 bar.

Ayvaz MKSF-30 Unlined Fixed Flanged Expansion Joint — Technical Specifications

Steam lines, hot water and heating systems are primary application areas. In addition, chemical and petrochemical plants as well as power stations frequently choose this expansion joint. Furthermore, it successfully dampens stresses caused by thermal expansion in industrial process pipelines. Consequently, it provides a dependable solution under demanding process conditions.

In conclusion, Ayvaz MKSF-30 Unlined Fixed Flanged Expansion Joint is the ideal choice for reliable expansion solutions under high temperature and pressure. ORFA Industrial supplies worldwide and provides technical support. Contact us for technical support and orders.
