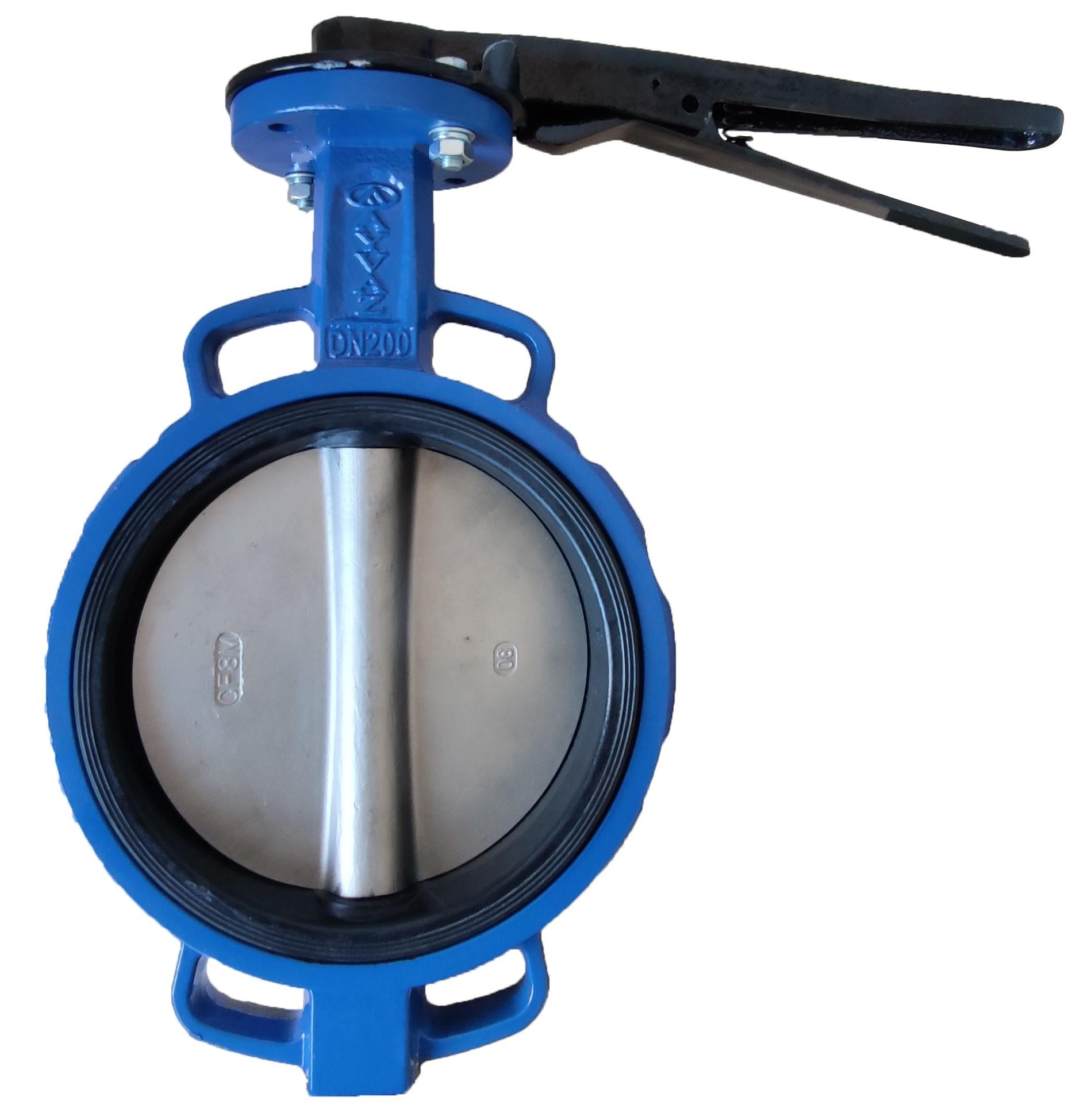

AYVAZ KV-3 Wafer Type Butterfly Valve DN200 PN16
Compact, leak-tight flow control for large-diameter pipelines.
The AYVAZ KV-3 Wafer Type Butterfly Valve controls flow in DN200 piping systems, in addition it combines energy efficiency with safe operation. Moreover, its PN16 pressure class and 130°C temperature tolerance ensure reliable service in cold and hot water as well as steam lines.
The body is made of GG-25 cast iron and the disc of AISI 316 stainless steel, ensuring durability. The stem is AISI 420 stainless steel, and the disc rotates 90 degrees to fully open or close the pipe cross-section. Furthermore, the H-EPDM elastomer seal provides zero-leakage performance between the metal disc and the body, therefore maximising energy efficiency with minimum pressure loss.
AYVAZ KV-3 Wafer Type Butterfly Valve — Technical Specifications
This valve is widely preferred in central heating systems and hot water distribution lines. In particular, it handles flow control in cooling towers and industrial cooling networks. Additionally, it is safely used in ventilation and air conditioning installations. Consequently, process lines requiring controlled discharge of steam and condensate are also key applications.
Key Advantages
- Compact wafer design enables integration into large-diameter pipelines with minimum footprint
- Manual lever actuator allows fast open/close operation and improves operator comfort
- AISI 316 disc and H-EPDM seal combination guarantees full diaphragm sealing
Applications
- Central heating and hot water distribution systems with cooling towers
- Industrial cooling networks and ventilation/air conditioning installations
- Process lines requiring controlled discharge of steam and condensate
Ultimately, the AYVAZ KV-3 Wafer Type Butterfly Valve is the ideal solution for safe and efficient flow control in your large-diameter installations. Therefore, ORFA Industrial has stocked this valve as an authorised distributor since 1985. ORFA supplies worldwide and provides technical support. Please contact us for technical support and pricing.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
