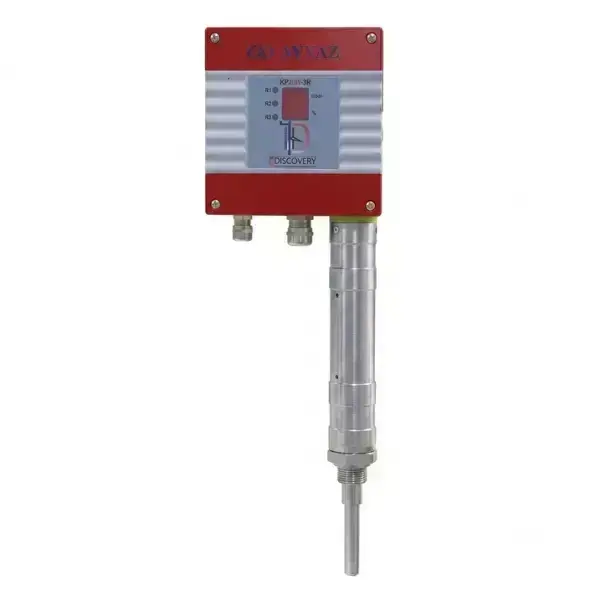

AYVAZ KP2W-3R Capacitive Level Electrode 3/4″ L:2000mm
Continuous, wear-free level monitoring for conductive and non-conductive liquids in demanding industrial processes.
The AYVAZ KP2W-3R Capacitive Level Electrode provides continuous smart level measurement for conductive and non-conductive liquids. In addition, it is designed for industrial plants, steam boilers and chemical storage tanks. Furthermore, its fully insulated measuring rod operates on the capacitance principle, tracking current changes as liquid height varies.
This electrode uses the electrical capacitance formed between the probe rod and the tank wall. Moreover, a smart transmitter integrated into the housing generates a standard analog output proportional to level. The unit also provides multiple relay contact outputs, and its SPDT contacts are current and voltage protected. Because it has no moving parts, it resists mechanical wear, while the aluminum injection housing withstands impact and harsh conditions.
AYVAZ KP2W-3R Capacitive Level Electrode — Technical Specifications
Steam boilers and high-temperature process tanks rely on this electrode for continuous tracking. In addition, it serves shipbuilding and marine applications, fuel tanks and brine storage automation. Furthermore, it is used in food machinery, glycol tanks, wine cellars and clean water storage systems. It is also suitable for hot, sticky, high-viscosity acids and low-conductivity chemical liquids.
Key Advantages
- Integrated display on the cover allows level reading without an external unit
- No moving parts, so mechanical wear and failure risk are eliminated
- Flexible calibration with easy on-site adjustment of lower and upper limits
- Integrated relay contacts can connect directly to alarm and safety circuits
- Aluminum injection housing resists impact and heavy ambient conditions
Applications
- Steam boilers and high-temperature industrial process tanks
- Shipbuilding and marine fuel tanks and brine storage automation
- Food machinery, glycol tanks, wine cellars and clean water storage
- Storage of hot, sticky, high-viscosity acids and low-conductivity chemical liquids
The AYVAZ KP2W-3R Capacitive Level Electrode eliminates overflow and dry-run risks in industrial storage and boiler operations. ORFA Industrial supplies it worldwide and provides technical support for your continuous level measurement projects.
