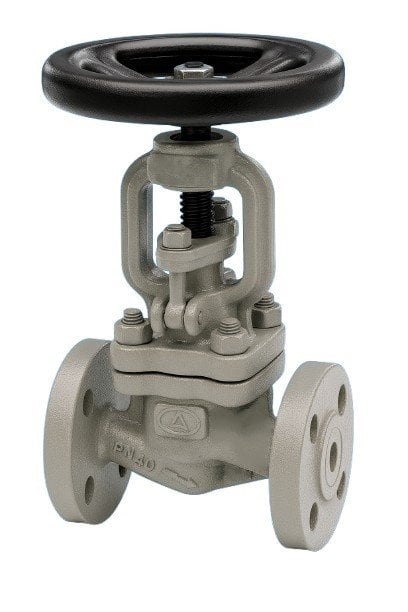

AYVAZ GV-40K Pressure Globe Valve DN40
Reliable high-pressure, high-temperature flow control for demanding industrial lines.
The AYVAZ GV-40K Globe Valve is engineered for dependable flow control in industrial plants operating under high pressure and temperature. In addition, its straight flow design maintains laminar flow through pipelines, so pressure loss stays low. Furthermore, the robust body and sealing performance deliver a long service life.
Flow is opened and closed by precise contact between the disc and the seat. Moreover, a handwheel drives the stem, positioning the disc onto the seat. Consequently, this mechanism minimises turbulence and pressure loss, producing balanced, reliable flow. The body and cover are GSC-25 cast steel with a 13 Cr stainless steel seat, flanged connections, DN40 nominal diameter and a maximum working temperature of 450 °C, withstanding up to 40 bar.
AYVAZ GV-40K Globe Valve — Technical Specifications
This valve suits steam boilers and high-temperature steam systems. In addition, it performs well in boiling water and hot-cold water lines. It is also preferred for compressed air and chemical fluid transfer lines with non-acidic and non-alkaline liquids. Furthermore, it provides durability in ammonia and oil transfer lines.
Key Advantages
- GSC-25 cast steel body withstands up to 40 bar
- 13 Cr stainless steel disc and seat for high sealing performance
- Flanged connection for easy installation and maintenance
Applications
- Steam boilers and high-temperature steam systems
- Boiling water and hot-cold water lines
- Compressed air and chemical fluid transfer lines
As a result, the AYVAZ GV-40K Globe Valve is an ideal solution for reliable flow control in industrial facilities. ORFA Industrial supplies it worldwide and provides technical support, drawing on expertise in the sector since 1985.
