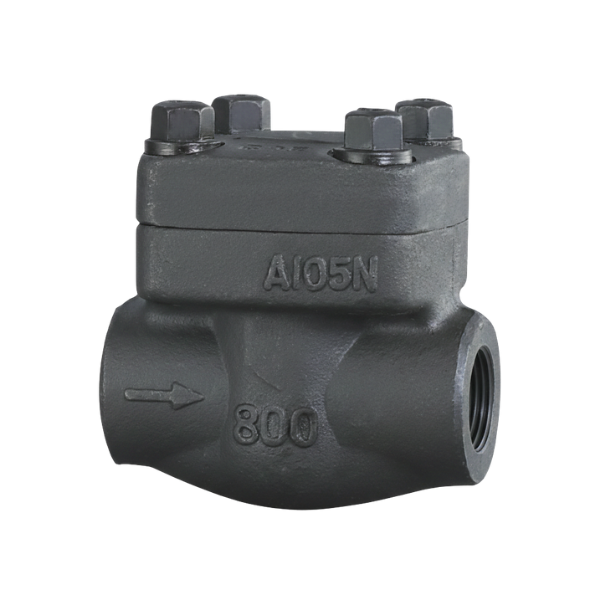

AYVAZ FPCV-10 Piston Type Check Valve API 602 2″
Millisecond reverse flow shut-off for critical high pressure lines.
AYVAZ FPCV-10 Piston Type Check Valve API 602 is engineered to prevent reverse flow in critical lines operating under high pressure and temperature. In addition, its ASTM A105N forged steel body delivers 300% higher mechanical strength than cast alternatives. Therefore, it provides safety control in steam boilers and petrochemical plants. Furthermore, a Stellit 6 coated seat guarantees wear resistance.
The piston mechanism lifts the disc with fluid pressure and seats it fully once flow stops, minimising slamming and maximising system safety. As a result, the short stroke and fast reaction time protect against dangerous pressure surges. The body is ASTM A105N forged steel, the disc is ASTM A182 F6A stainless steel, and the pressure class is Class 800 to ANSI/ASME. Design follows API 602 and ASME B16.34, with a maximum working temperature of 540°C for steam lines. In addition, the socket weld connection integrates quickly and safely into piping.
AYVAZ FPCV-10 Piston Type Check Valve — Technical Specifications
This valve is used to protect high pressure gas and liquid lines in steam boilers, thermal power plants and refineries. Moreover, it is reliably chosen for industrial water heating systems and heat exchanger discharge lines. In particular, it provides safety control in critical processes at petrochemical facilities.
Key Advantages
- Stellit 6 coated seat gives superior wear resistance against high speed steam and particles
- Piston mechanism cuts reverse flow in milliseconds and prevents slamming
- Full compliance with API 602 and ASME B16.34 standards for reliability in international projects
Applications
- Safety control in steam boilers and high temperature energy systems
- Protection of high pressure gas and liquid lines in petrochemical plants and refineries
- Boiler safety systems and discharge lines in thermal power plants
In summary, the AYVAZ FPCV-10 Piston Type Check Valve API 602 delivers uninterrupted safety and long service life on high pressure steam and gas lines. ORFA Industrial, an authorised distributor since 1985, holds this product in stock worldwide and provides technical support. Contact our professional team for technical support and pricing.
