AYVAZ DLTKKB-50 Expansion Joint L:50mm DN250

AYVAZ DLTKKB-50 Expansion Joint L:50mm DN250

Protects pipelines from thermal movement, vibration and mechanical stress with safe limit rod control.

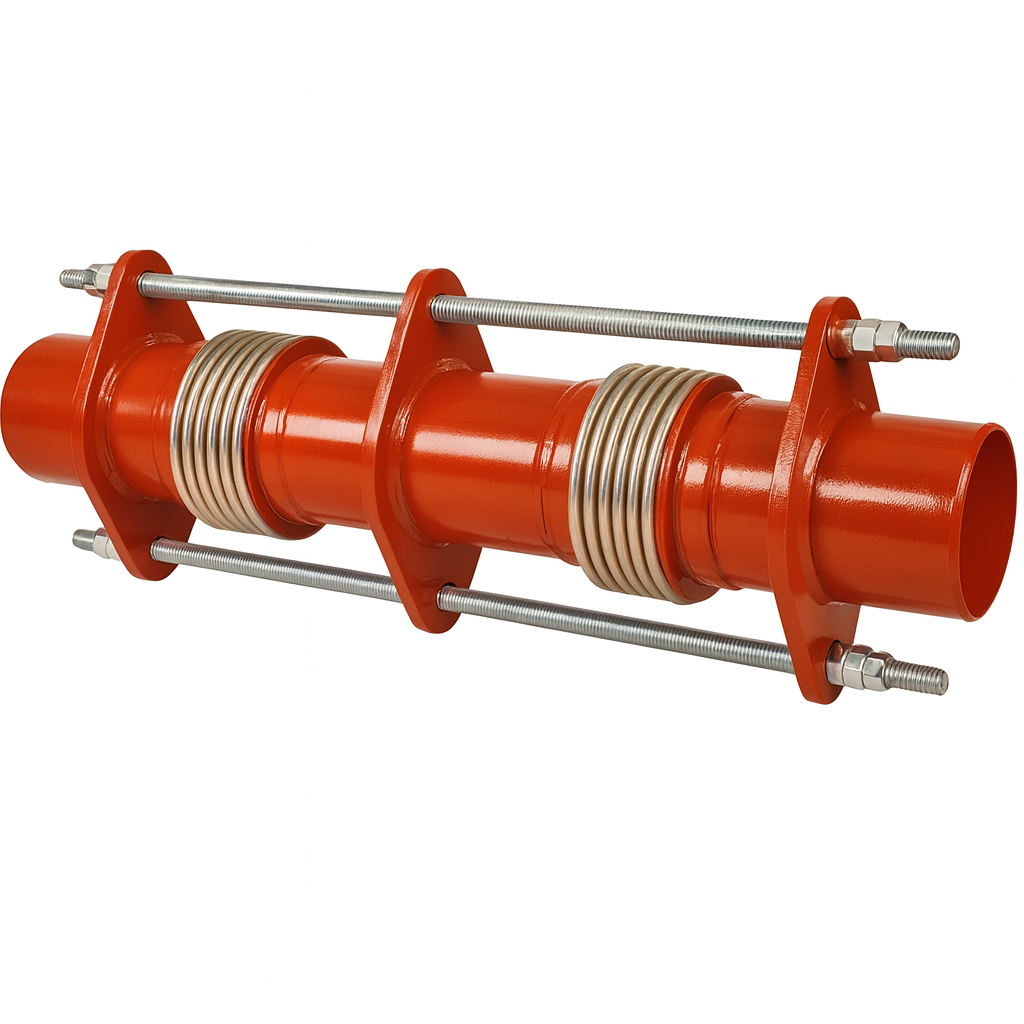

AYVAZ DLTKKB-50 Expansion Joint absorbs expansion, contraction and vibration in DN250 pipelines, therefore protecting the entire system. In addition, its limit rod mechanism restricts excessive movement, which extends the service life of both the joint and the pipeline. As a result, it delivers dependable performance even in industrial plants operating at high temperature and pressure.

A stainless steel bellows effectively absorbs axial, lateral and angular deflection. The inner bellows construction allows continuous operation from -80°C to +427°C, while the 16 bar design pressure ensures safe performance under demanding process conditions. Moreover, the St 37.2 carbon steel connection and limit rods raise mechanical durability for long service in steam, hot water, thermal oil and air lines.

AYVAZ DLTKKB-50 Expansion Joint — Technical Specifications

This expansion joint is widely used at dilatation points in building services and in high temperature industrial plants. It is particularly preferred in steam, hot water, thermal oil and air lines where expansion and contraction are intense. Furthermore, it works reliably in systems that must absorb vibration and mechanical stress. The DN250 connection size, in addition, makes integration into large diameter pipelines straightforward.

In conclusion, AYVAZ DLTKKB-50 Expansion Joint delivers a safe and durable solution for expansion problems in pipelines. ORFA Industrial supplies it worldwide with authorized distributor warranty and provides technical support. Please contact us for technical support and pricing.
