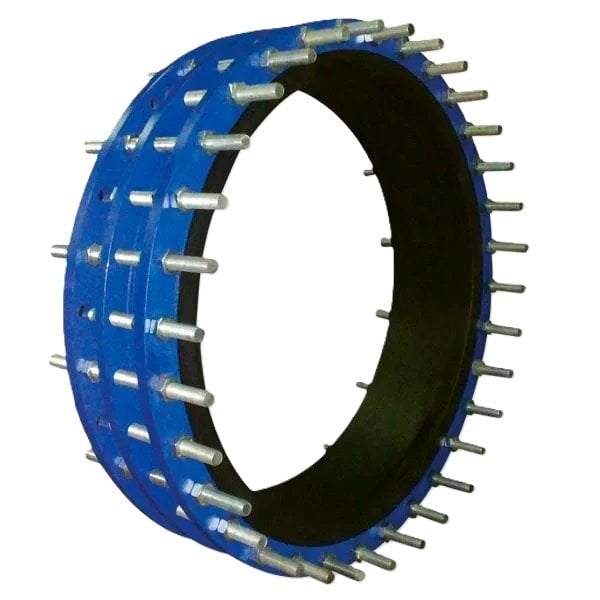

AYVAZ Disassembly Joint DN100
Reliable pipeline maintenance made fast with telescoping flanged design.
The AYVAZ Disassembly Joint DN100 simplifies the assembly and disassembly of valves and similar equipment on pipelines. In addition, it is a flanged connection element that saves considerable time during maintenance by allowing equipment to be removed without dismantling the entire line. Therefore, operations become safer and more efficient.
The working principle is highly effective: during installation, the piece shortens its length to create the necessary gap, allowing equipment to fit easily into the line. Moreover, the telescoping pipes slide over each other to close the distance, and when the studs are tightened, sealing is achieved. Disassembly occurs in reverse order, so the pipeline does not need to be fully dismantled. The body is made of GGG 40-50 ductile iron, studs and nuts are galvanized steel, the pressure rating is PN10 / PN16, and the sealing ring is EPDM.
AYVAZ Disassembly Joint DN100 — Technical Specifications
This disassembly joint is used across a wide range of applications. In particular, it is preferred in HVAC systems, water treatment and distribution plants, mining industry, and shipbuilding. Furthermore, it is safely used in chemical, petrochemical, food and beverage industries, and fire extinguishing systems. With an operating temperature of -10 °C to +80 °C and PN10/PN16 pressure class, it adapts to demanding conditions.
Key Advantages
- High mechanical strength thanks to GGG 40-50 ductile iron body
- Telescoping pipe structure significantly shortens assembly and disassembly time
- EPDM sealing ring ensures leak-tight connection and long service life
Applications
- Valve connection in heating, ventilation and air conditioning (HVAC) systems
- Equipment assembly and disassembly in water treatment and distribution plants
- Process line maintenance in chemical, petrochemical and food industries
In conclusion, the AYVAZ Disassembly Joint DN100 is a reliable solution that facilitates valve and equipment changes in industrial facilities. ORFA Industrial supplies worldwide and provides technical support, drawing on experience in the sector since 1985.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
