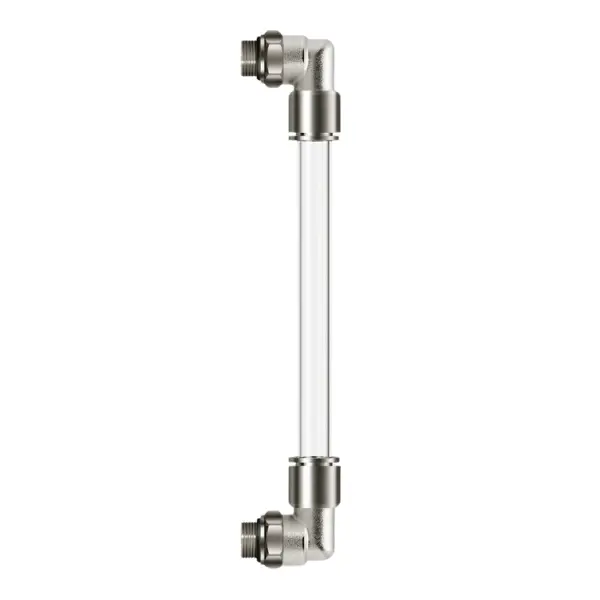

AYVAZ AELD-11 Level Monitoring Gauge L:500mm

AYVAZ AELD-11 Level Monitoring Gauge L:500mm

Achieve accurate, reliable liquid level observation in tanks, boilers, and process lines.

The AYVAZ AELD-11 Level Monitoring Gauge delivers precise liquid level control for industrial facilities. In addition, its 500 mm measuring range allows easy installation in compact spaces. Furthermore, the gauge provides real-time visual inspection of liquid levels in tanks and boilers. Therefore, it is ideal for points requiring continuous observation.

The gauge is available with either a borosilicate glass or Plexi (acrylic) tube. As a result, the working temperature reaches 500°C for glass and 60°C for Plexi. Moreover, maximum operating pressure is 3 bar for glass and 2 bar for Plexi. The body is nickel-plated brass for glass versions or plastic for Plexi, with an optional stainless steel option. Additionally, an optional magnetic contact (IP66, 12-24VDC, NPN-NO, 300mA) allows automation integration, and the contact cable length is 2 meters.

AYVAZ AELD-11 Level Monitoring Gauge — Technical Specifications

This level monitoring gauge serves food factories, machine manufacturers, and water treatment plants. Furthermore, it is widely used in tanks, boilers, and industrial piping for flow observation. In addition, process systems benefit from its continuous visual monitoring. Consequently, it prevents overflow and dry-run risks in critical installations.

Monitor your liquid level safely with the AYVAZ AELD-11 Level Monitoring Gauge. ORFA supplies worldwide and provides technical support for your project.
