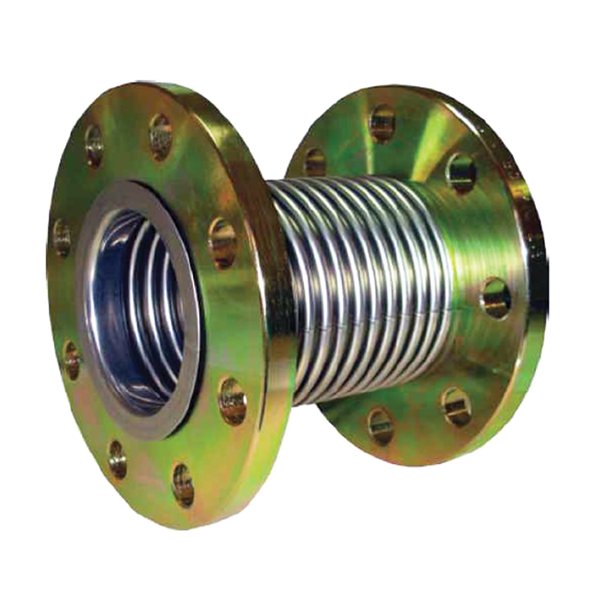

Axial Metal Expansion Joint DN32
Engineered flexibility that protects pipelines from thermal stress and vibration.
The Axial Metal Expansion Joint DN32 absorbs thermal expansion stresses elastically in medium and large pipeline networks. In addition, its rotating flanged design compensates for installation tolerances and increases pipeline flexibility. Therefore, it delivers a reliable solution in facilities with high temperature differences.
The metal bellows consists of welded-free layers and maintains performance across a wide temperature range from -40°C to +400°C. Moreover, the PN16 design pressure is manufactured in accordance with the EN 12640 standard. As a result, it effectively dampens vibration at pump and compressor outlets. The axial movement capacity is ±10 mm in both directions, and the flange type is rotating PN16 with standard bolt hole spacing. The corrosion class is C5-M for industrial and outdoor environments, and it conforms to EN 12640, EN 1092-1 and ISO 1170.
Axial Metal Expansion Joint DN32 — Technical Specifications
It is widely used in power generation plants, the petrochemical industry and heating-cooling systems. Furthermore, it provides vibration control in agricultural pump stations and prevents pipe cracks. In chemical plants, a stainless steel 304/316 option offers superior corrosion resistance.
Key Advantages
- Thermal management: safely absorbs pipe expansion over a wide temperature range
- Vibration damping: metal bellows structure effectively reduces dynamic effects
- Installation flexibility: rotating flange enables fast adaptation to different lines
Applications
- Power generation plants: hot water and steam lines
- Petrochemical industry: high-pressure transfer networks
- Heating-cooling systems and rotating machine outlets
In conclusion, the Axial Metal Expansion Joint DN32 is an indispensable component for professionals seeking durability and safety in pipelines. ORFA supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
