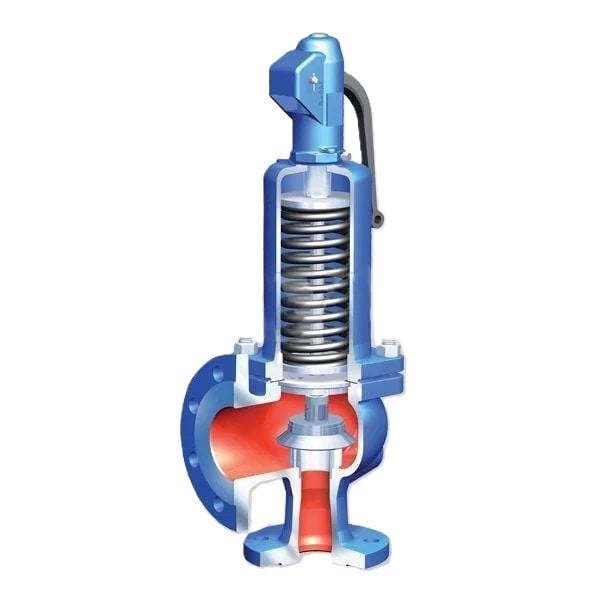

ARI® SAFE 12.902 Full Lift Safety Valve PN16 DN100/150
Fast, reliable overpressure protection for critical steam and gas systems.
ARI SAFE 12.902 Full Lift Safety Valve automatically discharges excess pressure to protect pressurized equipment. In particular, it offers wide application across industrial plants with DN100/150 nominal diameters in the PN16 pressure class. Furthermore, its full lift design ensures rapid relief and dependable reseating.
This safety valve operates on a spring-loaded mechanism. When system pressure exceeds the set value, the disc opens automatically; when pressure returns to normal, spring force closes the disc and stops flow. The body and bonnet are EN-JL1040 cast iron, while the trim is 1.4021+QT stainless steel. Moreover, a FDSiCr/51CrV4 spring supports a maximum operating temperature of 300°C.
ARI SAFE 12.902 Full Lift Safety Valve — Technical Specifications
It is used in steam lines, boiler systems, compressed air, gas and hot water installations. In addition, it provides critical safety in chemical, petrochemical plants and power stations. Consequently, it is also preferred in food and beverage process lines.
Key Advantages
- Full lift design for rapid pressure relief and safe closure
- EN-JL1040 cast iron body and stainless steel trim for long service life
- Reliable performance in high-temperature applications up to 300°C
Applications
- Overpressure protection in steam lines and boiler systems
- Safety equipment in compressed air and gas systems
- Process safety in the chemical and petrochemical industry
ARI SAFE 12.902 Full Lift Safety Valve is an ideal solution for plant safety and uninterrupted operation. ORFA Industrial supplies it worldwide and provides technical support as an authorized distributor since 1985. Contact us for technical support and a price quote.
