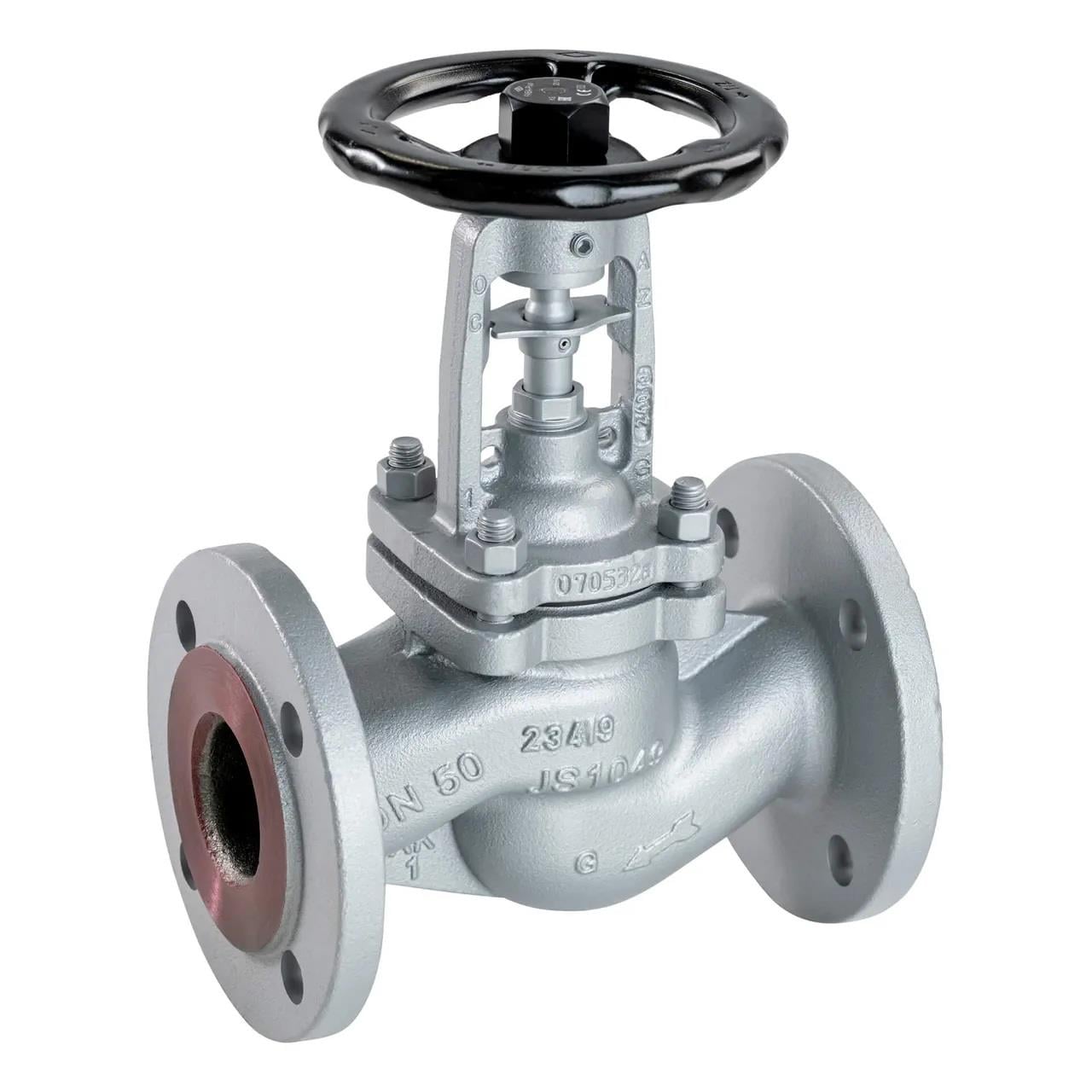

ARI FABA Plus 23.046 Metal Bellows Valve PN25 DN40
Zero-leak performance for steam, hot water, and aggressive fluids.
ARI FABA Plus 23.046 Metal Bellows Valve delivers zero-leak performance in steam and hot water lines. In addition, its double-wall stainless steel bellows makes it far more reliable than classic stuffing box valves. Furthermore, it ensures high sealing integrity when controlling aggressive fluids.
The valve operates at PN25 pressure class with DN40 nominal diameter. Moreover, the body is made of EN-JS1049 ductile iron, and the bellows are 1.4571 (AISI 316Ti) double-wall stainless steel. The disc and seat are 1.4021+QT (AISI 420) stainless steel. Consequently, it offers a long service life and low operating cost. It also includes a grease nipple, rotation lock, and stroke indicator. Test standard: EN ISO 15848-1 / TA-Luft, TÜV approved.
ARI FABA Plus 23.046 Metal Bellows Valve — Technical Specifications
This valve works reliably in steam boiler outlets and heat exchangers. In particular, it is preferred in chemical and petrochemical plants for aggressive fluid control. Additionally, it finds widespread use in power plants and industrial process lines. Furthermore, the rotation lock and mechanical stroke indicator let operators easily monitor valve position.
Key Advantages
- Zero-leak performance thanks to double-wall stainless steel bellows
- Long service life with ductile iron body and stainless steel disc
- High safety with TA-Luft TÜV approved sealing tests
Applications
- Safe flow control in steam and condensate lines
- Hot water and heat transfer systems
- Aggressive fluid management in chemical and petrochemical plants
As a result, ARI FABA Plus 23.046 Metal Bellows Valve is the ideal solution for industrial facilities seeking high sealing integrity and safety. ORFA Industrial supplies worldwide and provides technical support.
