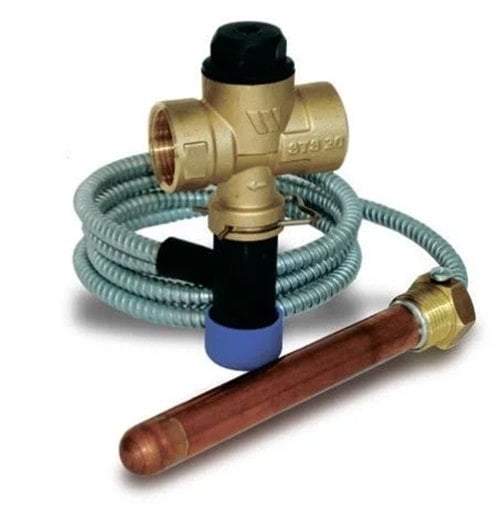

WATTS STS20.S 0232620 Thermal Safety Valve 1/2″ 97°C

WATTS STS20.S 0232620 Thermal Safety Valve 1/2″ 97°C

Advanced thermal protection for solid fuel and pellet boiler systems.

The WATTS STS20.S Thermal Safety Valve 1/2″ 97°C protects solid fuel and pellet boilers by discharging sudden temperature rises in a controlled manner. In addition, its dual safety element design maintains system protection even in the event of a failure. Furthermore, this valve activates automatically when boiler water reaches the maximum temperature.

The valve operates precisely at a 97°C set point and handles a maximum working pressure of 10 Bar. Moreover, its discharge capacity of 6500 L/h at 8 Bar makes it ideal for medium-scale installations. Its heat-sensitive capillary tube mechanism dissipates residual thermal energy when combustion cannot be stopped immediately. In addition, the 1/2″ female-female valve connection and 1/2″ male probe connection ensure easy integration into standard boilers. With a 145 mm probe pocket and a 1300 mm capillary tube, it provides thorough temperature monitoring.

WATTS STS20.S Thermal Safety Valve — Technical Specifications

This thermal safety valve is used as a safety standard in pellet and wood-fired boiler systems. Furthermore, it is preferred for protecting central heating units in residential and cooperative installations. In addition, it offers an effective solution in industrial boiler rooms and agricultural greenhouse heating environments. Moreover, it fully complies with European Union safety standards thanks to PED 2014 certification.

In conclusion, the WATTS STS20.S Thermal Safety Valve 1/2″ 97°C guarantees safe and efficient operation in your solid fuel boilers. ORFA Industrial has stocked this product as an authorized distributor since 1985. ORFA supplies worldwide and provides technical support and order assistance.
