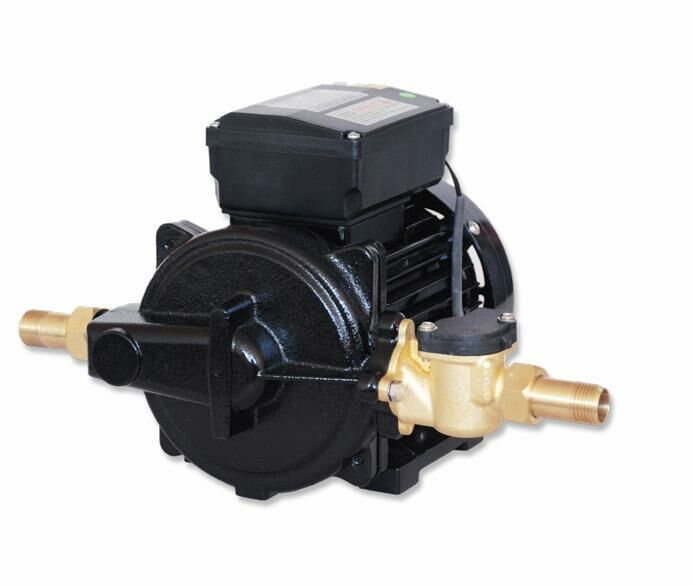

WATER SOUND PLX-169EA Solar Energy Hot Water Pump
Reliable high-temperature circulation with low energy consumption.
WATER SOUND PLX-169EA Solar Energy Pump provides reliable circulation in solar systems, moreover with high temperature resistance and low energy consumption. It efficiently transfers heat from solar collectors throughout the piping system. In addition, a mechanical switch system provides automatic pressure control, particularly delivering uninterrupted performance at high temperatures.
The pump operates on 220 V AC / 50 Hz single-phase power with a 0.27 HP / 0.2 kW motor running at 2900 r/min. It delivers a maximum head of 15 mH2O and a maximum flow rate of 2.8 m³/h (47 l/min). The motor shaft is AISI 431 stainless steel, and the impeller is stainless steel for superior corrosion resistance. The liquid temperature range is 10°C to 60°C, with IP54 protection and Class F insulation.
WATER SOUND PLX-169EA Solar Energy Pump — Technical Specifications
This pump is ideal for circulating hot water between solar collectors and thermal storage tanks. It is also used in panel combination units and pump groups. Furthermore, it serves efficiently in underfloor heating and radiator lines in residential and small commercial facilities. Its low noise level enhances working comfort.
Key Advantages
- Mechanical switch automatic pressure management reduces maintenance requirements.
- Stainless steel impeller and cast body provide long-lasting operation.
- High temperature resistance up to 60°C ensures reliable performance in solar systems.
Applications
- Hot water circulation between solar collectors and thermal storage tanks.
- Use in panel combination units and pump groups.
- Underfloor heating and radiator lines in residential and small commercial facilities.
As a result, WATER SOUND PLX-169EA Solar Energy Pump is an ideal choice for those seeking energy efficiency and durability. Therefore, ORFA Industrial has been a reliable solution partner since 1985, offering technical support and fast supply. For orders and detailed information, contact our expert team. ORFA Industrial supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
