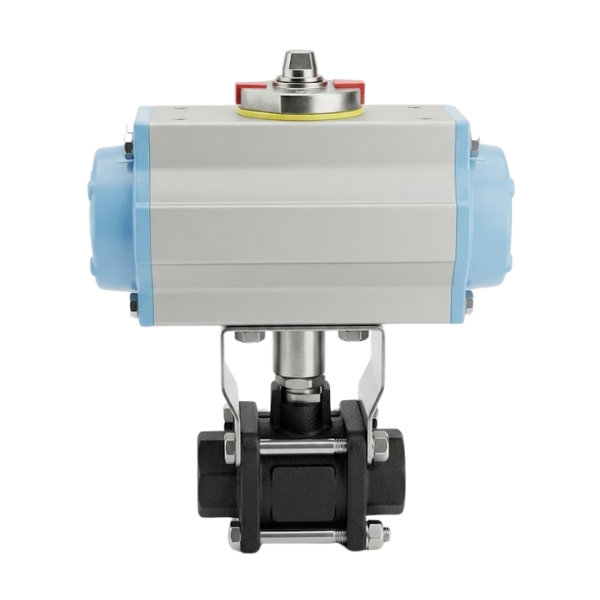

Valpres Actuated Cast Steel Ball Valve 3/4″ PN40
Fast quarter-turn automation with high sealing integrity in a heavy-duty cast steel body.
The Valpres Actuated Cast Steel Ball Valve combines Valpres valve quality with Valbia pneumatic actuator technology, therefore forming a complete automation unit for precise flow control. Its A352-LCB cast steel body is designed for heavy-duty service at PN40 pressure class, moreover the stainless steel ball and PTFE sealing seats deliver high tightness and corrosion resistance.
The Valbia DA 52 double-acting rack and pinion actuator drives the valve through a 0-90° open-close movement, with +/- 5° fine adjustment via the end-stop bolts. Body and cover are A352-LCB cast steel, the ball is A479-TP304 / A351-CF8 stainless steel, and the stem is A479-TP304 stainless steel. O-rings are FKM (Viton) and seal washers are TFM / PTFE. The actuator uses a pressed, anodized aluminium body, chrome-plated steel pinion gear and standard NBR seals rated from -20°C to +85°C. Connections follow ISO 5211, DIN 3337 and NAMUR standards, while the valve face-to-face meets PN40 pressure class.
Valpres Actuated Cast Steel Ball Valve — Technical Specifications
This valve suits chemical and process lines that require automatic flow control, in particular where steam, gas and liquid transfer must be regulated. Furthermore, food and pharmaceutical plants use the hygienic stainless steel ball version, while water treatment plants and power stations rely on it for main-line service. Its compact actuator and NAMUR interface also allow fast solenoid and positioner integration.
Key Advantages
- High pressure resistance with PN40 cast steel body for vibration-free ball valve performance.
- Precise control through +/- 5° adjustment bolts for accurate positioning.
- Corrosion resistance from stainless steel stem and ball for long service life.
- Easy integration with NAMUR and ISO 5211 standards for fast solenoid connection.
Applications
- Chemical and process lines requiring automatic flow control.
- Industrial piping for steam, gas and liquid transfer.
- Food and pharmaceutical applications with hygienic stainless steel ball.
- Water treatment plants and power station main lines.
With the Valpres Actuated Cast Steel Ball Valve, your plant gains Italian engineering and uninterrupted automation. ORFA Industrial supplies worldwide and provides technical support for every unit.
