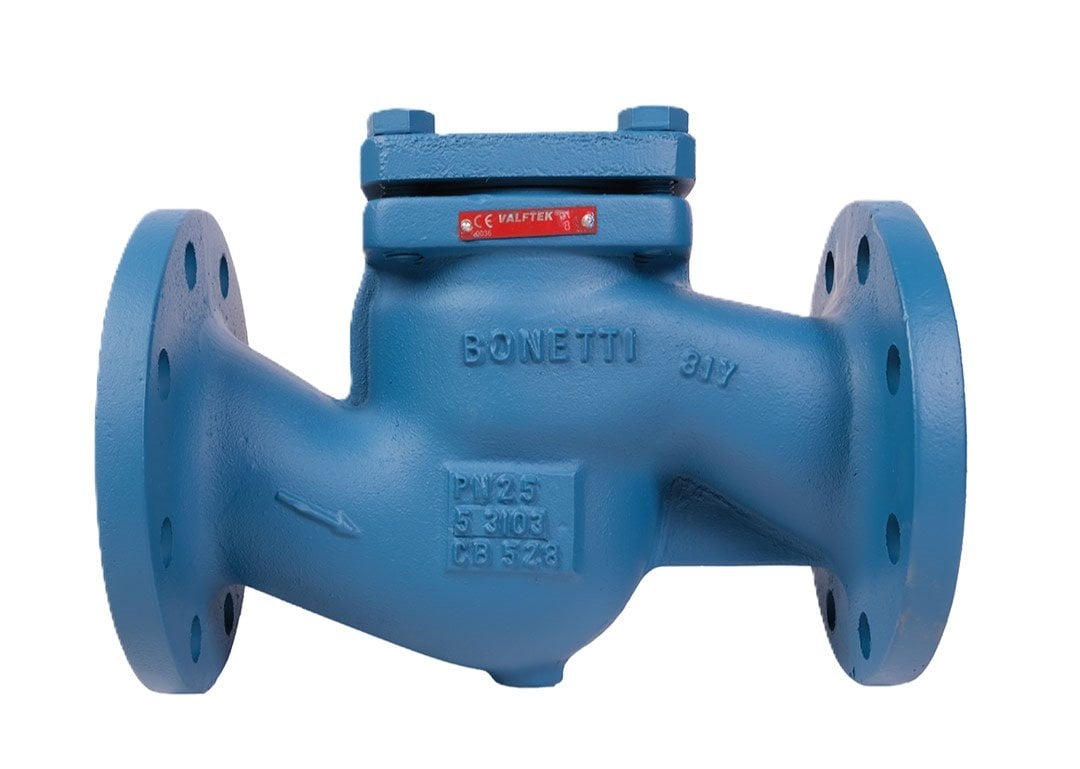

VALFTEK Lift Type Check Valve DN200 PN25
Reliable reverse flow protection and long service life in high-pressure lines.
VALFTEK Lift Type Check Valve prevents reverse flow in industrial plants with its DN200 nominal diameter and PN25 pressure class. In addition, its ductile iron body and stainless steel disc offer superior corrosion resistance. Therefore, it protects equipment especially in steam, thermal oil and hot water lines.
A spring-loaded lift mechanism ensures automatic closure when flow stops. Moreover, the flanged connection complies with DIN 2501 and EN 1092-2 standards. The ductile iron body (GGG40) withstands high pressure fluctuations, while the AISI 304 stainless steel disc and AISI 302 spring minimize wear during extended use. Consequently, system efficiency increases and maintenance requirements decrease. Maximum operating temperature is 400°C.
VALFTEK Lift Type Check Valve — Technical Specifications
This valve operates safely in steam boilers and heating systems. In particular, thermal oil transfer lines prefer it for high-temperature resistance. Furthermore, it minimizes energy losses in hot water and radiator installations. Additionally, it provides reliable flow control in compressed air lines.
Key Advantages
- Spring-loaded lift mechanism completely prevents reverse flow
- Ductile iron body and stainless steel components ensure long service life
- Removable cover allows easy maintenance and access to internal parts
Applications
- Steam boilers and industrial heating systems
- Thermal oil transfer lines and process piping
- Hot water and compressed air distribution circuits
In conclusion, VALFTEK Lift Type Check Valve provides reliable flow control in high-pressure lines. ORFA supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
