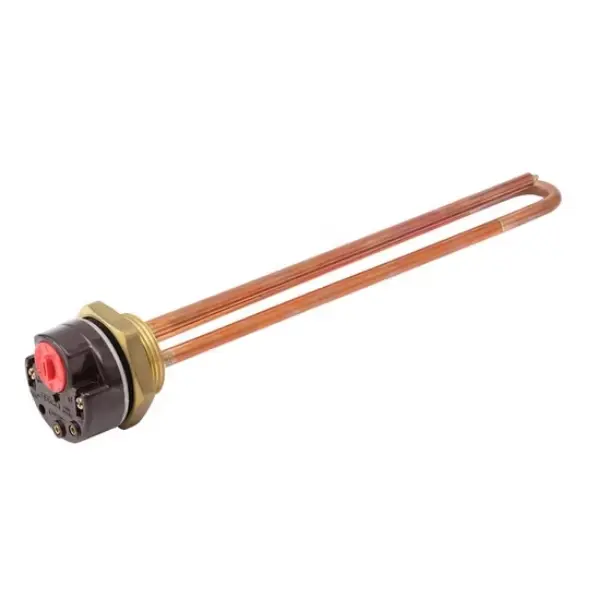

THERMOWATT RTM-300 Thermostatic Resistance Heater 2000W 1 1/4″
Precise, energy-efficient water heating for tanks, boilers and solar systems.
The THERMOWATT RTM-300 Thermostatic Resistance Heater brings precise temperature control to domestic and industrial water heating systems. In addition, its integrated RTM-300 plug-in thermostat works in full harmony with temperature control systems. Therefore, this copper heater delivers reliable hot water service across a wide range of installations.
A 2000W (2 kW) rating at 220V drives efficient heating, while the 28 cm (280 mm) straight copper body transfers heat quickly to the liquid. Moreover, the brass threaded head resists corrosion and seal deformation. The 8.5 mm tube accepts 8 mm to 8.5 mm sensor pockets, and the unipolar thermostat switches at 20 A / 250 V with 8 °C ± 4 °C hysteresis. Maximum ambient temperature is 105 °C, and the electrical connection uses 6.3 mm x 1.0 mm quick faston terminals.
THERMOWATT RTM-300 Thermostatic Resistance Heater — Technical Specifications
These heaters serve domestic and industrial thermosiphons, boilers and hot water tank systems. Furthermore, they support solar-assisted water heating applications. They also suit industrial washing plants and sterilization devices that need sensitive temperature control. In particular, small and medium chemical and textile tanks requiring constant process water temperature benefit from the stable 0°C to 80°C adjustment range.
Key Advantages
- Plug-in RTM-300 thermostat for wireless, fast and safe connection
- Pure copper straight tube for maximum heat transfer
- Corrosion-resistant brass screw head
- 20 A unipolar thermostat contact for safe operation
- Optional 185 mm and 220 mm sensor pocket lengths on request
Applications
- Domestic and industrial thermosiphons, boilers and hot water tanks
- Solar-assisted water heating systems
- Industrial washing plants and sterilization devices
- Small and medium chemical and textile process tanks
For installation guidance, power and size options, or original spare parts for the THERMOWATT RTM-300 Thermostatic Resistance Heater, contact the ORFA Industrial team. ORFA supplies worldwide and provides technical support, helping you achieve maximum energy savings and long-lasting performance.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
