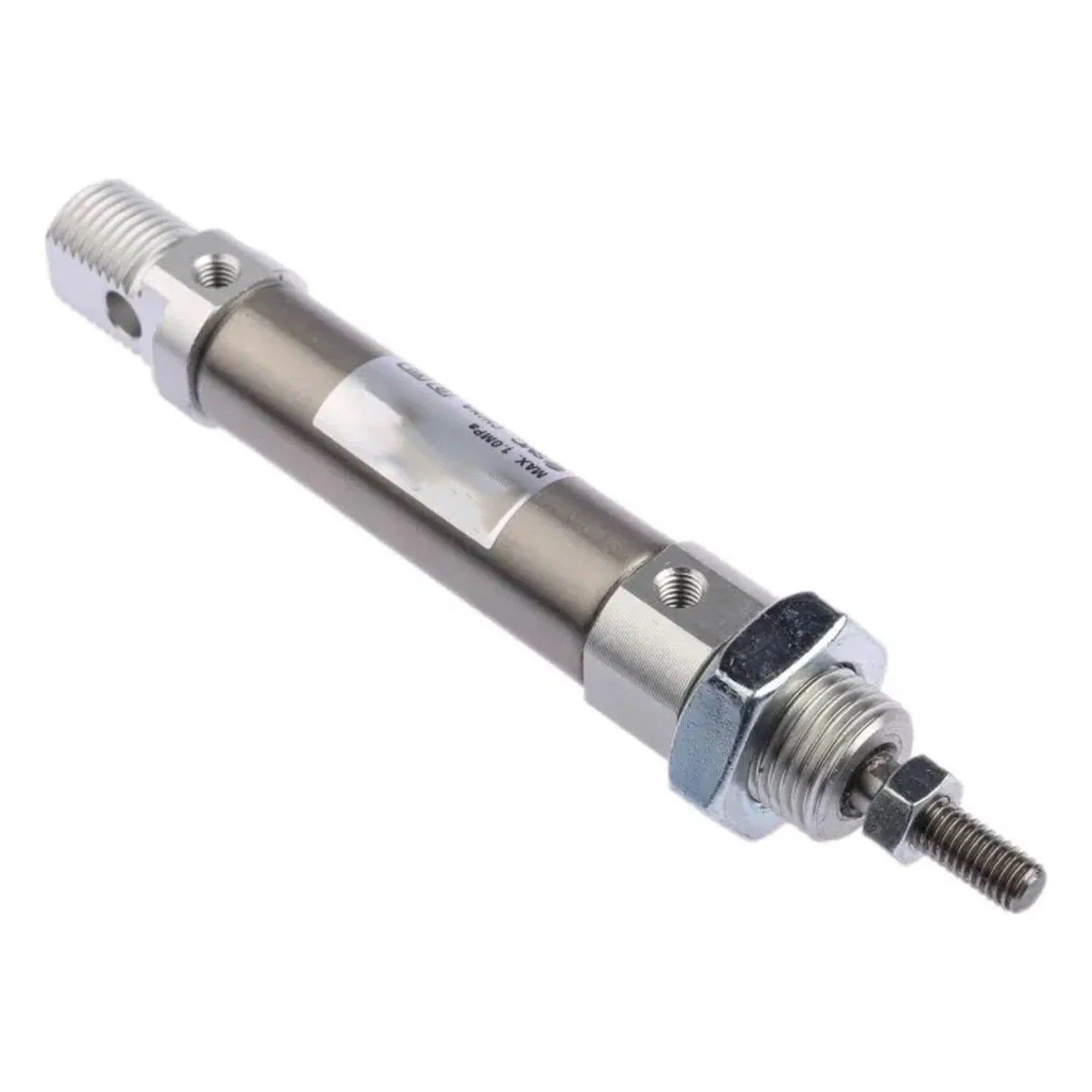

Tekmak Magnetic Pneumatic Pen Cylinder Ø12 x 80 mm

Tekmak Magnetic Pneumatic Pen Cylinder Ø12 x 80 mm

Compact aluminium cylinder for precise linear motion in tight installation spaces.

The Tekmak Magnetic Pneumatic Pen Cylinder Ø12 x 80 mm is engineered to deliver precise linear motion in industrial automation systems. In particular, it offers an ideal solution for users who need high performance in narrow spaces. Moreover, its internal magnetic piston allows position sensing with external sensors.

The double-acting working principle generates equal force in both directions, therefore increasing efficiency. In addition, the cylinder has a compact design with a 12 mm piston diameter and 80 mm stroke length. The aluminium body material combines light weight with durability, consequently providing long service life in corrosive industrial environments. It operates with dry, filtered air at 1 – 10 bar and -20°C to +80°C.

Tekmak Magnetic Pneumatic Pen Cylinder — Technical Specifications

This cylinder is widely preferred in packaging, assembly and robotic applications. Furthermore, low friction delivers energy efficiency and therefore reduces system costs. The wide operating pressure range of 1-10 bar, in addition, enables easy integration into different systems. It suits linear motion tasks in automation and control systems, push-pull operations in packaging and filling machines, and precise positioning in robotic arms and light assembly lines.

Ultimately, the Tekmak Magnetic Pneumatic Pen Cylinder Ø12 x 80 mm delivers reliable and efficient performance in your automation systems. ORFA supplies worldwide and provides technical support, drawing on experience in the sector since 1985.
