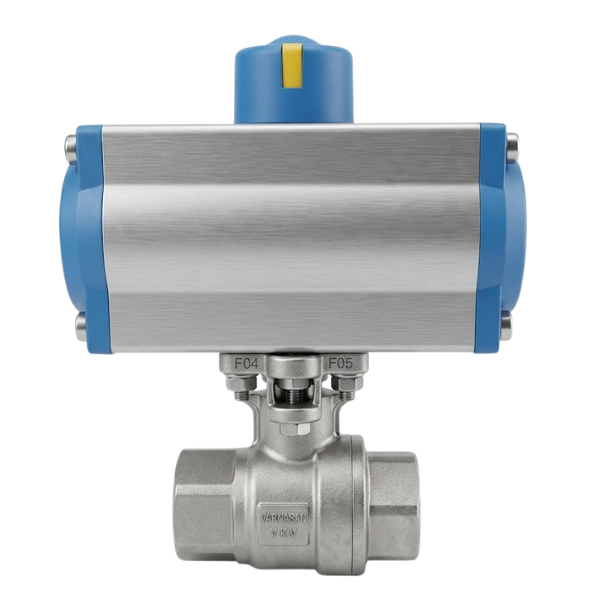

Pneumatic Actuated Stainless Steel Ball Valve PN63 1″
Reliable automatic flow control for high-pressure and corrosive industrial lines.
The Pneumatic Actuated Stainless Steel Ball Valve is an advanced solution for controlling high-pressure and corrosive fluids in industrial plants. Moreover, its AISI 304 stainless steel body and ball offer exceptional resistance to chemical corrosion. In particular, the 63 bar pressure rating ensures safe operation in demanding applications. Furthermore, pneumatic actuator integration allows easy inclusion in fully automated systems.
This valve has a compact 1″ design and an ISO 5211 mounting flange for easy installation. The PTFE seal enhances process stability for both liquid and gaseous fluids. Consequently, the 2/2 full-port configuration minimizes flow loss and delivers high efficiency. It operates within a temperature range of -20°C to +80°C. The torque range is 12 Nm to 80 Nm, with a 90° rotation angle (±5° adjustable).
Pneumatic Actuated Stainless Steel Ball Valve — Technical Specifications
It is ideal for acidic fluid management in the chemical and petrochemical industries. Additionally, it provides hygienic flow control in wastewater treatment plants, food, and pharmaceutical production lines. Therefore, it is safely used in power plants and high-pressure air/gas distribution lines. Moreover, the ATEX protection rating allows operation in explosive atmospheres.
Key Advantages
- Maximum chemical resistance and long service life thanks to AISI 304 stainless steel
- Flexible process management with on-off or proportional flow control
- Safe operation under harsh conditions with 63 bar working pressure and ATEX protection
Applications
- Acidic fluid lines in the chemical and petrochemical industry
- Wastewater treatment and clean water distribution plants
- Hygienic flow control in food and pharmaceutical production lines
In conclusion, the Pneumatic Actuated Stainless Steel Ball Valve is the ideal choice for those seeking high precision and sealing in industrial automation systems. ORFA supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
