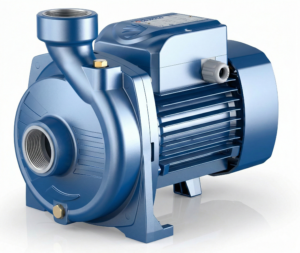

Pedrollo NGAm 1A Centrifugal Pump 1hp

Pedrollo NGAm 1A Centrifugal Pump 1hp

Reliable, clog-free transfer of particle-laden liquids in continuous duty.

The Pedrollo NGAm 1A Centrifugal Pump is engineered for transferring liquids that contain solid particles and for industrial washing systems. In addition, its open impeller design passes solids up to 10 mm in diameter without blockage. Furthermore, the AISI 316 stainless steel impeller offers high resistance to corrosion.

The 0.75 kW monophase motor runs on a 220-230V / 50Hz supply and holds its performance even in continuous duty. Maximum flow reaches 350 L/min (21 m³/h), while the head ranges from 19.5 metres down to 6 metres. Moreover, a cast iron body and a high-quality mechanical seal raise sealing standards, consequently protecting the installation and reducing maintenance needs.

Pedrollo NGAm 1A Centrifugal Pump — Technical Specifications

This pump improves efficiency in sensitive processes such as dirty water discharge and industrial dishwashing machines. It is also widely used in agricultural irrigation and food processing lines. In addition, it minimises clogging risk in fruit and vegetable washing lines, and its vibration-free operation protects system safety.

As a result, the Pedrollo NGAm 1A Centrifugal Pump delivers reliable, uninterrupted flow in liquids carrying solid particles. ORFA Industrial has served as an authorised distributor in industrial flow technologies since 1985. ORFA supplies worldwide and provides technical support and pricing on request.

ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.

Your Reliable Partner in Industrial Flow Technologies
