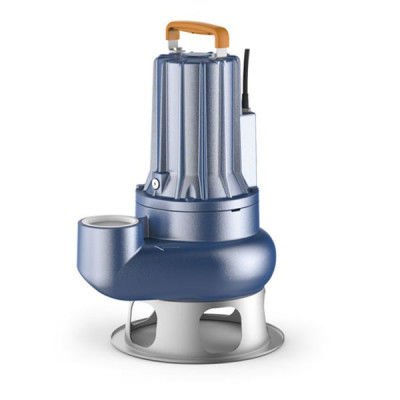

PEDROLLO MC 40/65 Sewage Submersible Pump 4 HP
Italian engineering for reliable heavy-duty wastewater drainage.
PEDROLLO MC 40/65 Septic Submersible Pump delivers safe drainage in domestic, commercial, and industrial wastewater facilities with its 4 HP motor and dual-channel impeller system. In addition, the 40 mm solid passage diameter allows fibrous waste and large particles to pass without clogging. Furthermore, it offers high efficiency especially in sewer and septic systems.
The pump body is made of heavy-duty cast iron, which provides long-lasting resistance to corrosive environments. Moreover, the AISI 431 stainless steel motor shaft and carbide-silicon mechanical seal protect motor components from wear. As a result, reliable performance is achieved even under continuous duty (S1). Technical specifications include: Model: PEDROLLO MC 40/65; Motor Power: 4 HP / 3 kW; Voltage: 380 V three-phase / 50 Hz; Maximum Head (MSS): 21 m; Maximum Flow Rate: 700 l/min (42 m³/h); Maximum Suction Depth (HS): 15 m; Solid Passage Diameter: 40 mm; Nominal Discharge Diameter (DN): DN65 (65 mm); Mechanical Seal: Carbide-Silicon; Motor Shaft: AISI 431 stainless steel.
PEDROLLO MC 40/65 — Technical Specifications
This pump is preferred in large booster stations, treatment plants, and municipal infrastructure projects. Additionally, it provides a reliable solution for commercial building sewage drainage and industrial wastewater management. In particular, the DN65 discharge diameter integrates easily with standard piping connections.
Key Advantages
- Dual-channel impeller system eliminates clogging risk with fibrous waste
- Heavy-duty cast iron body provides superior corrosion resistance
- Carbide-silicon mechanical seal protects motor shaft from wear
Applications
- Wastewater drainage in large booster stations and sewer networks
- Septic water pumping in industrial plants and treatment centers
- Dirty water and sewage pumping in commercial buildings and hotels
In conclusion, PEDROLLO MC 40/65 Septic Submersible Pump is the ideal solution for heavy-duty wastewater applications with its 4 HP motor and 40 mm solid passage capacity. ORFA Industrial has provided technical support and spare parts as an authorized distributor since 1985. Contact our expert team for your project; ORFA supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
