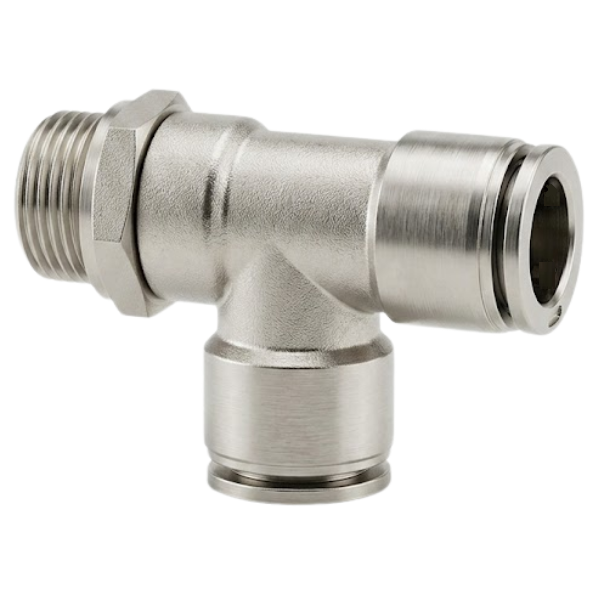

Maxtor Pneumatic Side Leg Swivel Tee 3/8″ – Ø10mm

Maxtor Pneumatic Side Leg Swivel Tee 3/8″ – Ø10mm

Rotating body and push-in locking deliver fast, leak-free air routing in tight spaces.

The Maxtor Pneumatic Side Leg Swivel Tee 3/8″ – Ø10mm is a smart connection solution that simplifies air routing in narrow spaces. Moreover, its 3/8″ male thread and two Ø10mm hose ports manage T-type connections flawlessly. Therefore, the 360° rotating body after installation prevents hose twisting and eliminates leak risk.

Nickel-plated brass threads and a technopolymer body provide safe operation between 0 and 10 bar. In addition, the fitting withstands a temperature range of -20°C to +80°C, so it performs reliably in demanding industrial conditions. Push-in technology locks hoses in seconds for rapid installation, while an integrated O-ring seal removes the need for additional PTFE tape. Stainless steel claws secure the hose safely at high pressure.

Maxtor Pneumatic Side Leg Swivel Tee — Technical Specifications

This fitting efficiently distributes air in the tight internal spaces of packaging and textile machines. Furthermore, it prevents hose twisting on robotic arms and assembly lines, extending system life. As a result, it also finds widespread use in the automotive industry and woodworking machinery.

In conclusion, the Maxtor Pneumatic Side Leg Swivel Tee 3/8″ – Ø10mm is the ideal choice for those seeking leak-tightness and efficiency in industrial air lines. ORFA Industrial supplies worldwide and provides technical support for wholesale inquiries.
