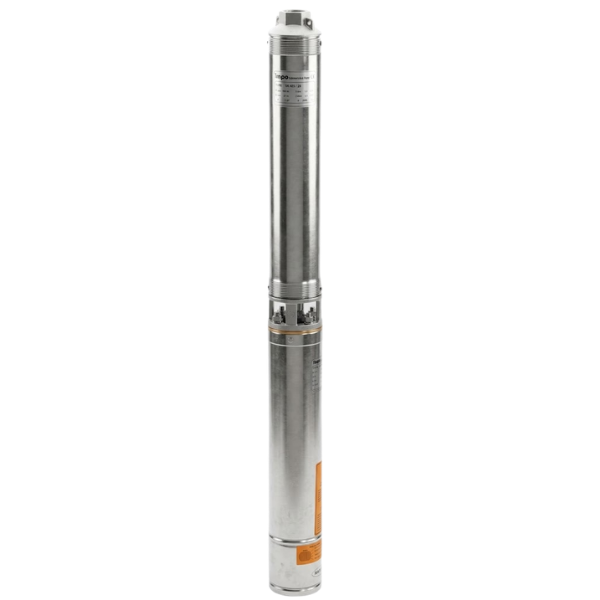

İmpo SK 412/18 Deep Well Submersible Pump 5.5 HP 380V

İmpo SK 412/18 Deep Well Submersible Pump 5.5 HP 380V

High-flow, energy-efficient water extraction from deep wells.

The İmpo SK 412/18 Deep Well Submersible Pump is a professional solution for extracting groundwater safely and efficiently. In addition, its powerful hydraulic structure generates high pressure while the Coverco motor technology maximizes energy efficiency. Therefore, it operates silently and without vibration, fully submerged, for stable performance even in demanding well conditions.

This pump runs on three-phase 380 V power and features a 4″ oil-cooled Coverco motor. It provides a maximum head of 107 m and a maximum flow rate of 16.99 m³/h. Moreover, the 2″ outlet and 95 mm maximum outer diameter allow installation in narrow wells. The motor is Class B rewoundable, IP68 rated, and handles up to 35°C water temperature, with a sand tolerance of 25 g/m³ and particle tolerance of 2 mm. Furthermore, the radial fan and counterclockwise rotation ensure reliable operation.

İmpo SK 412/18 Deep Well Submersible Pump — Technical Specifications

This pump is widely used in agricultural irrigation projects, industrial water supply, and residential water systems. In particular, it ensures uninterrupted water supply in facilities requiring high flow rates. Additionally, it reduces maintenance needs thanks to its robust body structure, making it ideal for continuous groundwater extraction.

The İmpo SK 412/18 Deep Well Submersible Pump ensures maximum efficiency and safe water supply. ORFA supplies worldwide and provides technical support for your project.
