İMPO NCV 15/08 Single Pump Packaged Booster Set 5.5HP

İMPO NCV 15/08 Single Pump Packaged Booster Set 5.5HP

High pressure and efficiency combined in one continuous-duty booster set.

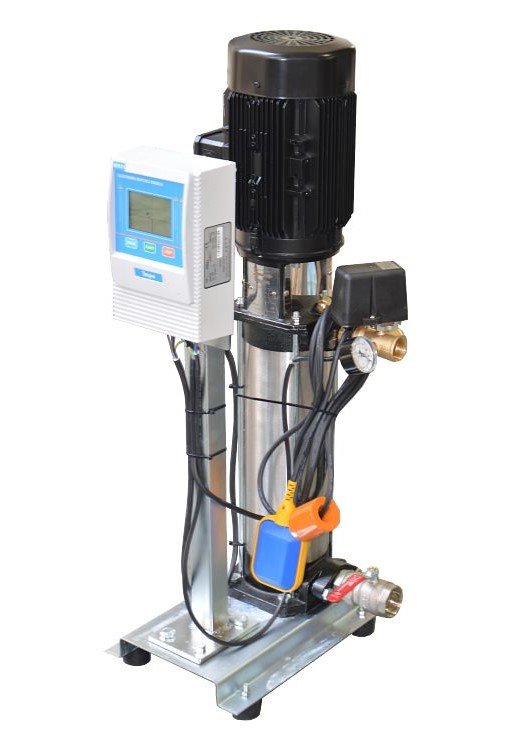

The İMPO NCV 15/08 Single Pump Packaged Booster Set combines high pressure with efficiency. Furthermore, its 5.5 HP IE3 motor pushes water up to 82 metres. In addition, the Noril impeller and stainless steel shaft deliver superior resistance to corrosion. Therefore, the S1 continuous duty rating enables uninterrupted water supply in industrial facilities.

This packaged booster set runs on 380V three-phase power at 50 Hz. The motor produces 5.5 HP, equivalent to 4.0 kW. Its maximum flow reaches 22.0 m³/h, or 366 l/min, with a maximum suction depth of 8 metres. The impeller is made of Noril durable elastomer, while the motor shaft is AISI 431 stainless steel. The pumped liquid temperature range is 0°C to +40°C, and the working regime is S1 continuous duty.

İMPO NCV 15/08 Single Pump Packaged Booster Set — Technical Specifications

It holds water pressure steady in large-scale facilities and apartment blocks. Moreover, it provides a reliable water source for fire suppression systems. As a result, it is also preferred in agricultural irrigation and industrial process lines. Furthermore, its automatic control panel minimizes user intervention.

In conclusion, the İMPO NCV 15/08 Single Pump Packaged Booster Set offers an excellent solution for industrial water pressurization needs. ORFA Industrial supplies worldwide and provides technical support. Contact us for detailed product information.
