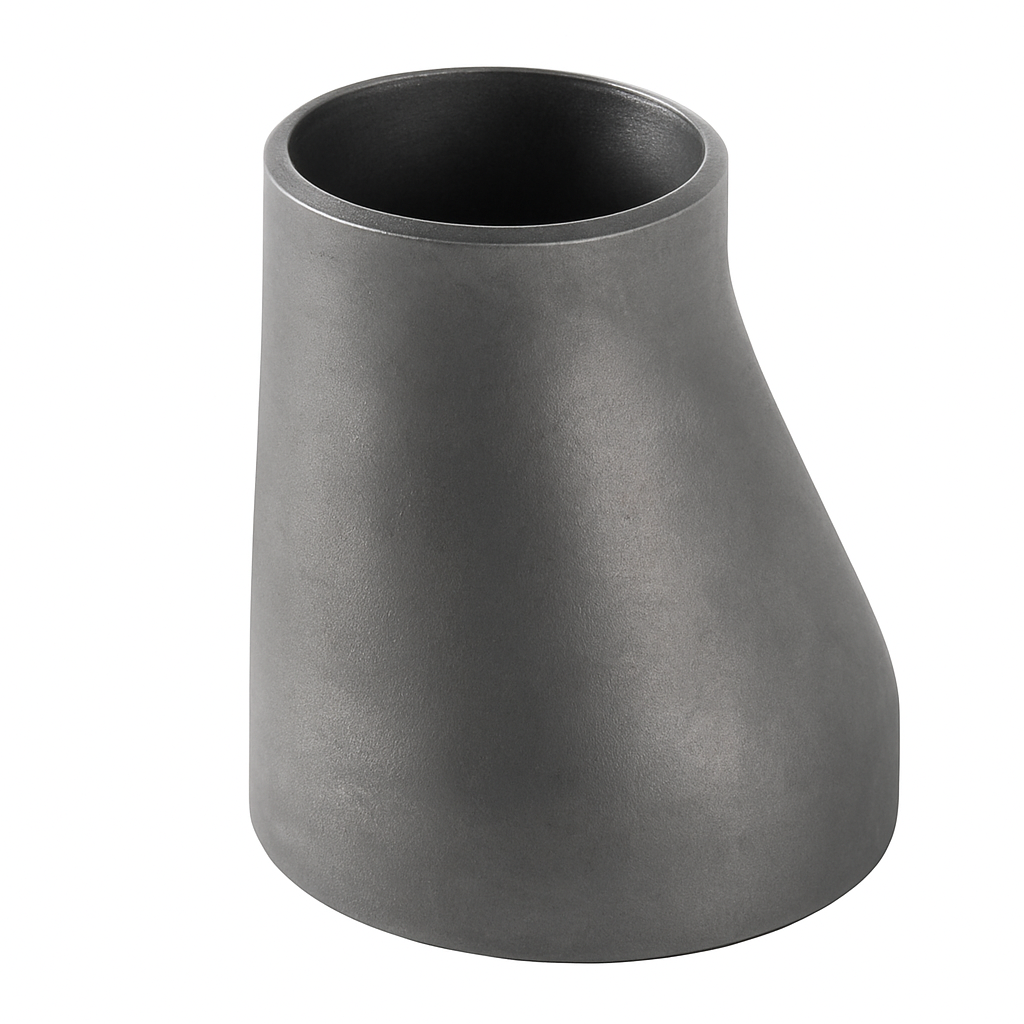

HAK-PI SCH40 Eccentric Reducer 8″ – 5″

HAK-PI SCH40 Eccentric Reducer 8″ – 5″

Off-center alignment that keeps pump suction lines free of air pockets.

HAK-PI SCH40 Eccentric Reducer 8″ is a reliable solution that prevents air pocket formation in pump suction lines. In addition, it joins different pipe diameters while avoiding fluid accumulation. Moreover, the off-center alignment removes air pockets in pump suction lines.

The ASTM A234 WPB carbon steel body delivers high pressure and temperature resistance. Furthermore, production to ANSI B16.9 guarantees system safety. In addition, the SCH40 wall thickness provides a robust structure in the standard weight class. Butt-weld connections create leak-tight, durable joints. As a result, it operates safely between -29°C and +425°C. PN16 pressure resistance delivers performance at a maximum of 16 bar operating pressure.

HAK-PI SCH40 Eccentric Reducer 8″ — Technical Specifications

It is widely used in chemical and petrochemical plants, power generation stations, and refinery pipelines. In addition, it minimizes energy loss by reducing turbulence in steam and hot water systems. Consequently, it improves flow efficiency in process lines and lowers maintenance costs. Furthermore, a black or anti-rust coated surface option provides extra corrosion protection.

As a result, HAK-PI SCH40 Eccentric Reducer 8″ delivers reliable performance in your industrial piping projects. ORFA supplies worldwide and provides technical support. This product is available from stock as an authorized distributor since 1985. Contact us to find the best solution for your project.
