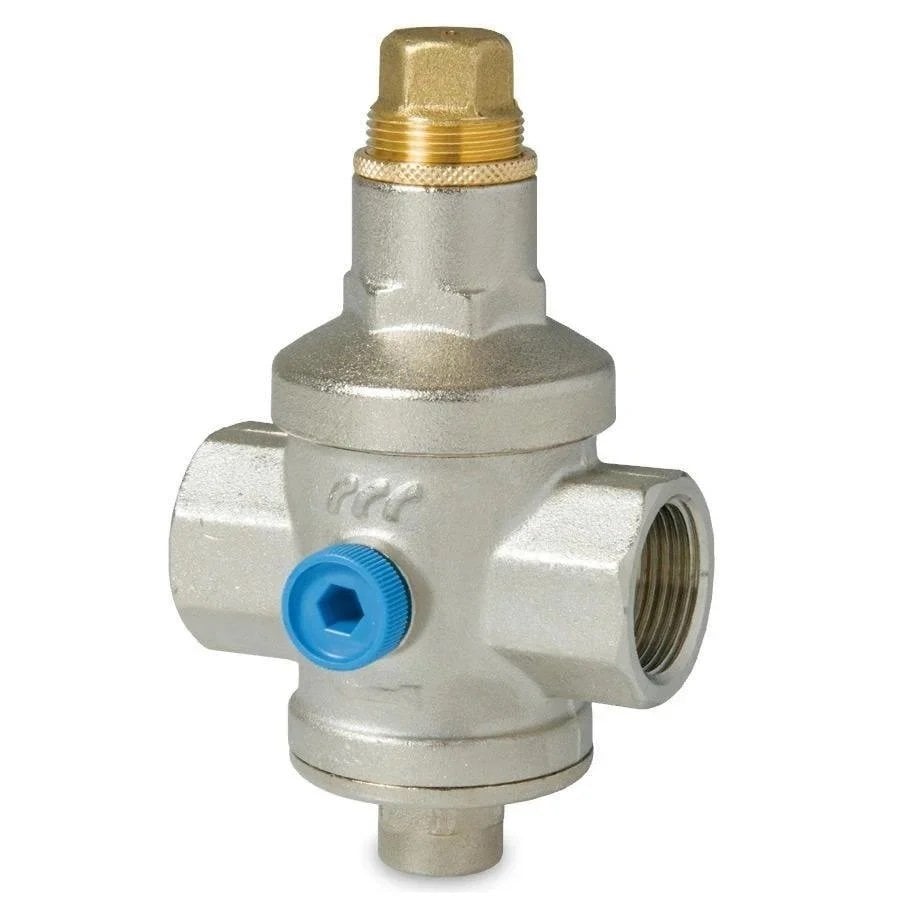

FARG 504 Pressure Reducing Valve 2 1/2″
Delivers stable, safe outlet pressure to protect pipelines and connected equipment.
The FARG 504 Pressure Reducing Valve 2 1/2″ automatically stabilizes water pressure in supply networks. In addition, it lowers high and fluctuating inlet pressure to safe, usable levels. Therefore, it protects system integrity in industrial installations. Moreover, the outlet pressure can be precisely adjusted between 1 and 7 bar, and the factory calibration is preset at 3 bar.
The nickel-plated brass body provides full corrosion resistance. Furthermore, a maximum working pressure of 25 bar and a temperature tolerance of 120°C ensure safe operation under demanding conditions. The internal mechanism contains a precision spring and diaphragm system. As a result, the valve fully complies with the EN 1567 standard. Female-female threaded connections allow easy integration into standard pipe systems.
FARG 504 Pressure Reducing Valve — Technical Specifications
This valve is ideal for controlling high pressure from municipal networks. In addition, it is used in central heating systems of buildings such as hotels and hospitals. Moreover, it provides pressure stabilization in light and medium industrial installations. Consequently, it is a suitable option for precise flow regulation in combi boiler systems.
Key Advantages
- Provides constant outlet pressure through automatic pressure control
- Offers full corrosion resistance thanks to the nickel-plated brass body
- Suitable for under-wall mounting due to its compact design without a gauge
Applications
- Installations controlling high pressure from municipal networks
- Pressure stabilization in industrial heating and process lines
- Flow regulation in industrial chimneys and combi boiler systems
In conclusion, the FARG 504 Pressure Reducing Valve 2 automatically controls water pressure and maximizes system service life. ORFA supplies this valve worldwide and provides technical support for selection and installation.
