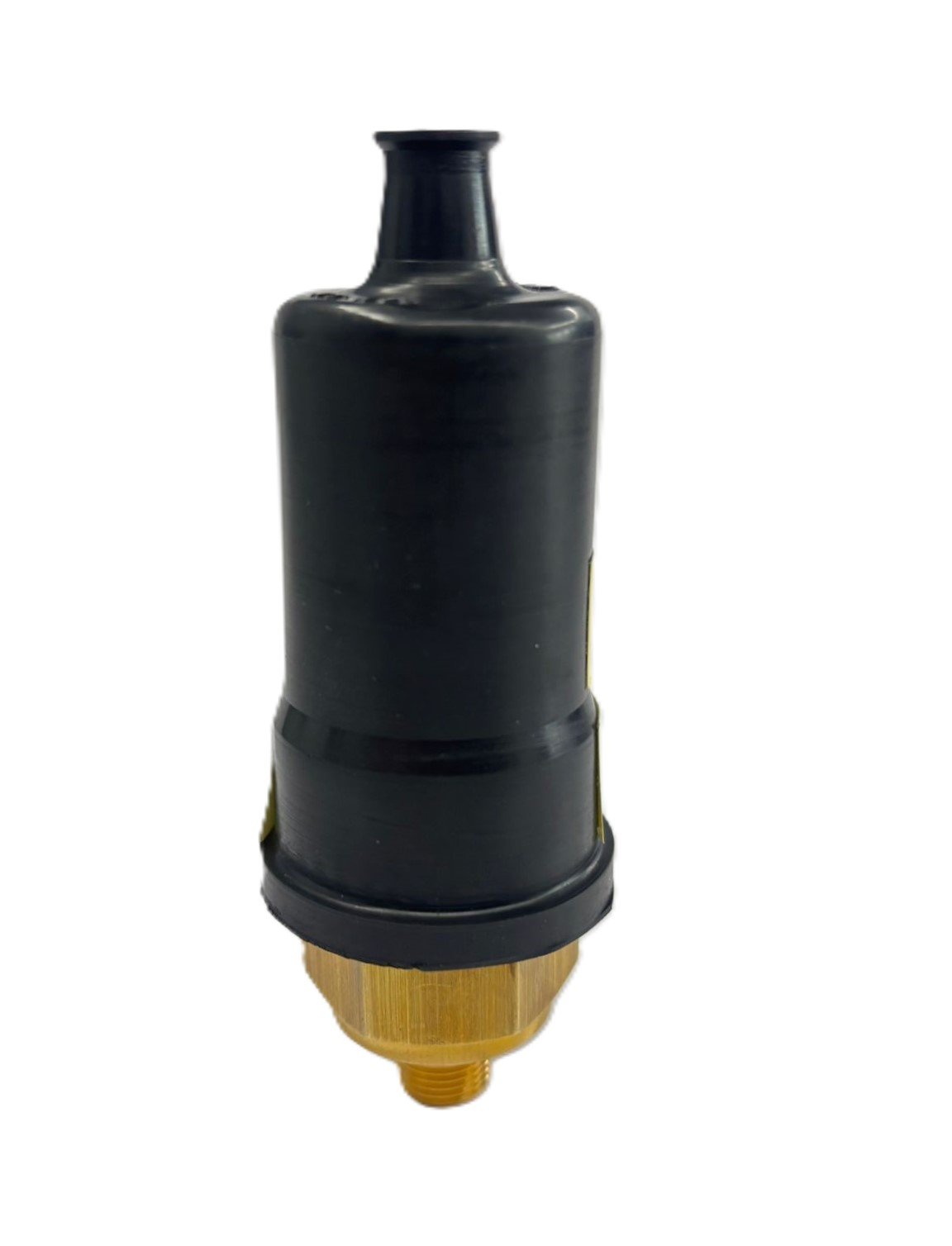

Elettrotec MS10SCR18 Pressure Switch 10 Bar

Elettrotec MS10SCR18 Pressure Switch 10 Bar

Reliable pressure monitoring and switching for demanding hydraulic and pneumatic circuits.

The Elettrotec MS10SCR18 Pressure Switch 10 Bar provides precise pressure management in hydraulic and pneumatic systems. In addition, its wide adjustment range from 0.2 to 10 bar suits many different installations. Moreover, it delivers reliable switching for pump and compressor protection circuits.

The brass body resists harsh conditions, while the SPDT contact structure handles both opening and closing reliably. Electrical connection is Faston 6.3 x 0.8 for easy mounting. The operating range is 0.2 to 10 bar, with a maximum static pressure of 300 bar. Switch rating is 6 (2) A at 250 Vac and 2 (1) A at 24 Vdc. Temperature range is -30°C to +140°C. Threaded connections include G1/8 BSPT, G1/4 BSPT, and M10x1. Protection class is IP00 without cap, IP54 with CAP 16, and IP65 with CAP 13. Diaphragm and seal options are FKM, Silicone, HNBR, Neoprene, and EPDM.

Elettrotec MS10SCR18 Pressure Switch — Technical Specifications

This switch is ideal for pressure control in hydraulic and pneumatic systems. Furthermore, it provides safety in industrial water installations and automation panels. Consequently, it works effectively in pump and compressor protection circuits. In particular, the CE certificate confirms compliance with international standards.

In conclusion, the Elettrotec MS10SCR18 Pressure Switch 10 Bar offers a reliable solution for your industrial automation projects. ORFA Industrial has served as an authorized distributor of this product since 1985. ORFA supplies worldwide and provides technical support and sales advice.
