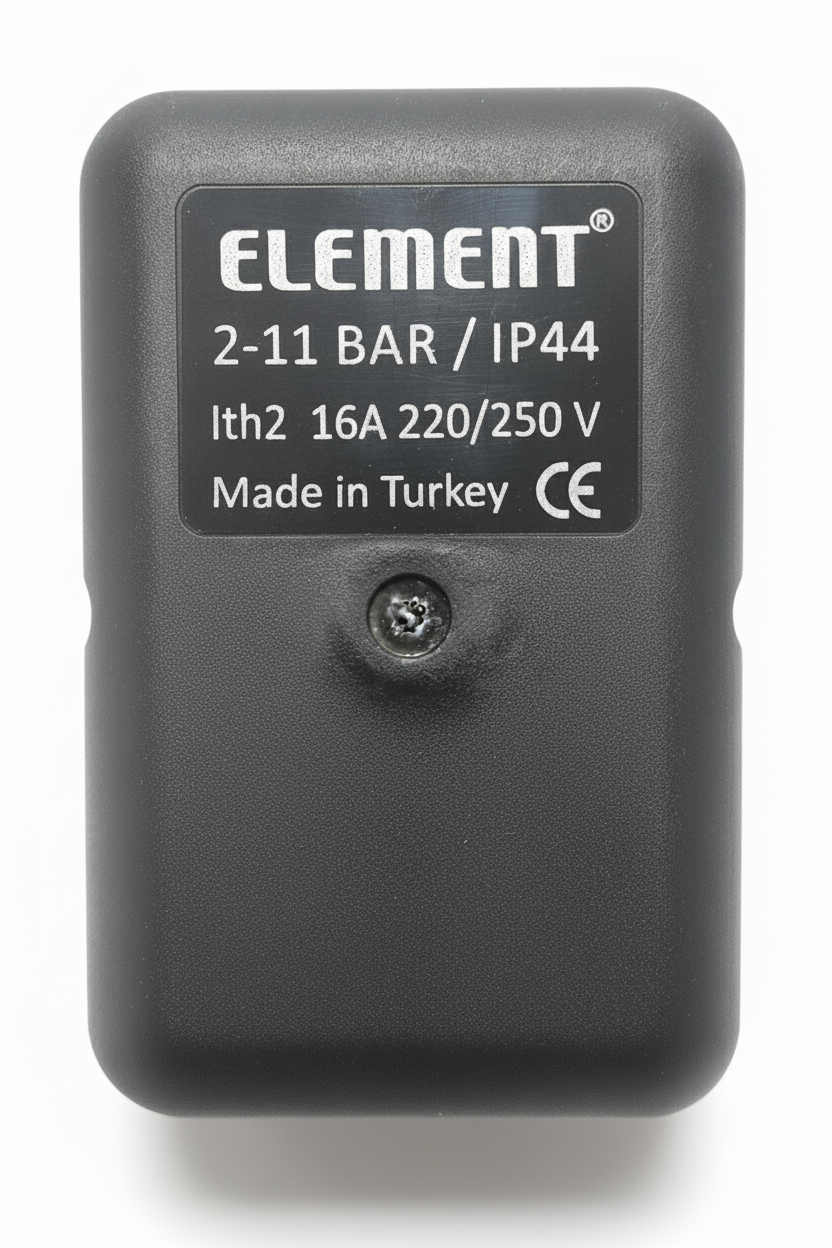

ELEMENT ELT-6C Pressure Switch 2-11 Bar with Relief
Reliable pressure control with adjustable settings and integrated relief for extended system life.
The ELEMENT ELT-6C Pressure Switch 2-11 Bar with Relief provides precise and reliable pressure management for industrial installations. In addition, it automatically monitors pressure in booster and compressor systems. Moreover, it senses pressure via an NBR/rubber diaphragm and opens or closes an electrical circuit through a silver microswitch. With an adjustable set value from 2 to 11 bar, it offers a wide range of applications.
The differential range is adjustable between 1.3 and 3.8 bar, which prevents the pump from frequent cycling. Furthermore, the 1/4″ bottom threaded connection allows for easy mounting. It operates on a 220-250 V single-phase power supply and handles a maximum motor power of 4 kW, ensuring high current-carrying capability. As a result, the IP44 protection class makes it resistant to dust and splashing water. Additionally, an operating temperature range of -10°C to +60°C ensures reliable performance in various ambient conditions.
ELEMENT ELT-6C Pressure Switch — Technical Specifications
This switch is particularly preferred in booster and water pressurization systems, and it also works effectively in air compressors and pneumatic systems. Moreover, it is safely used in industrial washing machines, automatic irrigation, and fire installations. In addition, its relief design discharges excess pressure, protecting the system and saving energy. Consequently, its compact and durable design offers long service life.
Key Advantages
- Adjustable pressure and differential range for easy configuration
- Relief design keeps system pressure at a safe level
- Withstands high current loads up to 4 kW motor power
Applications
- Automatic control in booster and water pressurization systems
- Pressure management in air compressors and pneumatic equipment
- Safe use in industrial washing machines and fire installations
In conclusion, the ELEMENT ELT-6C Pressure Switch 2-11 Bar with Relief provides reliable and economical pressure control for your industrial installations. ORFA Industrial has supplied this product as an authorized distributor since 1985. For technical support and procurement, contact our expert team. ORFA Industrial supplies worldwide and provides technical support.
