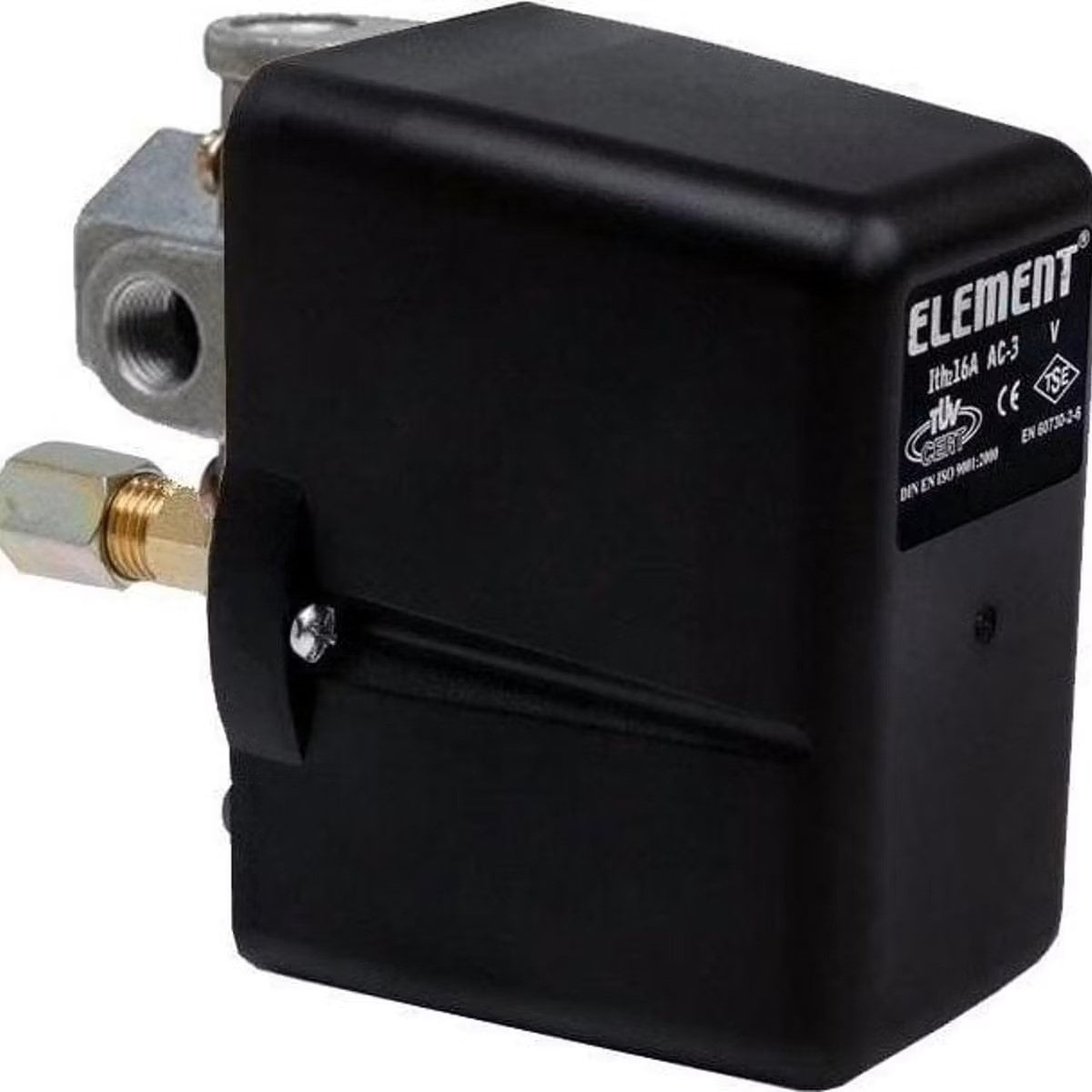

Element ELT-3C-3Y Three-Phase Pressure Switch 3-11 Bar
Precise automatic pressure control with integrated unloading for longer motor life.
The Element ELT-3C-3Y Three-Phase Pressure Switch 3-11 Bar provides precise pressure monitoring for industrial compressors and booster systems. In addition, its three-phase contact structure at 380 V supports motor power up to 4 kW. Therefore, it switches loads automatically for efficient energy use.
Users adjust the working pressure between 3 and 11 bar, while the differential ranges from 1.5 to 5.6 bar. Moreover, the NBR and rubber diaphragm maximizes chemical and physical resistance. A three-way closed contact body with integrated unloading lets engineers mount gauges and safety valves easily. Turning the adjustment screw clockwise raises the set pressure, and counterclockwise lowers it.
Element ELT-3C-3Y Three-Phase Pressure Switch — Technical Specifications
These switches serve industrial compressor systems and pump stations for steady pressure management. Furthermore, pneumatic testing and power systems on construction sites and in parking areas rely on them. Consequently, laboratories and production facilities with sensitive pressure needs benefit as well. The IP44 rating ensures continuous operation in damp or dusty environments.
Key Advantages
- Integrated unloading system automatically relieves the compressor head, keeping the motor unloaded
- NBR diaphragm technology maximizes chemical and physical resistance
- 200,000-cycle electrical life and IP44 protection ensure long-term reliability
Applications
- Automatic pressure control in industrial compressors and air systems
- Pressure management and energy optimization in booster sets and pump stations
- Pneumatic testing and power systems in parking areas, construction sites, and production facilities
In conclusion, the Element ELT-3C-3Y Three-Phase Pressure Switch 3-11 Bar delivers safe pressure management and long-lasting automatic control for your installation. ORFA Industrial supplies these switches worldwide and provides technical support since 1985.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
