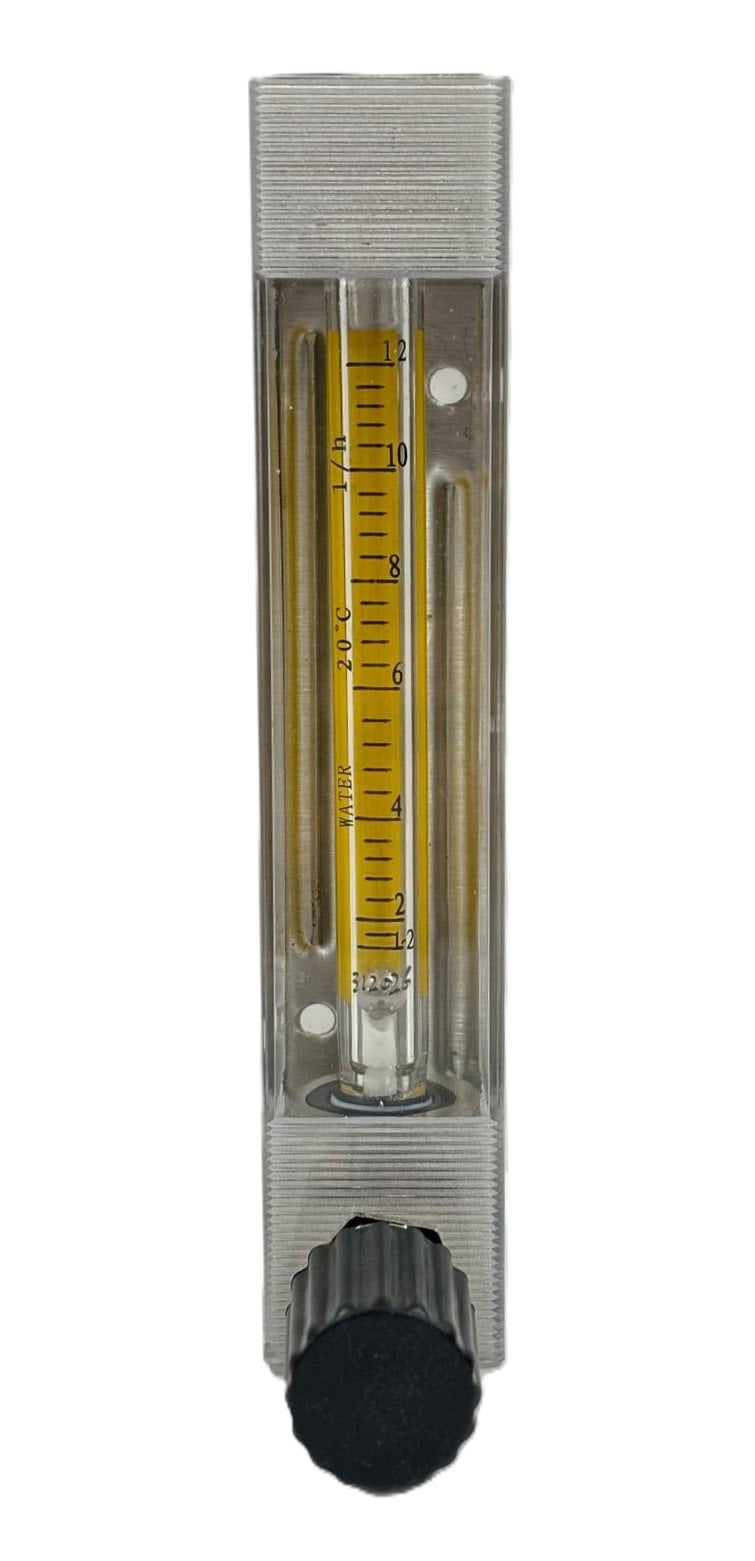

EF105 Variable Area Flow Meter with Adjustment Valve 1.2 – 12 L/h (Water)

EF105 Variable Area Flow Meter with Adjustment Valve 1.2 – 12 L/h (Water)

Precise low-flow control with direct visual monitoring and no external power.

The EF105 Adjustment Valve Flow Meter 1.2 – 12 L/h (Water) is engineered for precise water flow monitoring in industrial processes. Moreover, its mechanical design requires no external power and provides instant visual tracking through a borosilicate glass tube. In addition, the integrated needle valve lets you control flow rate down to the finest detail. Furthermore, AISI 316 stainless steel wetted parts deliver high corrosion resistance. As a result, it operates reliably across the 1.2 – 12 L/h range.

The connection size is 1/4″ BSP / NPT, which enables straightforward installation. The 100 mm measuring tube carries a clear, easy-to-read scale. Viton seals and PTFE float stops ensure safe operation up to 16 bar. Maximum temperature is 100 °C and accuracy class is 2.5. The float is made of 316 stainless steel, matching the needle valve material.

EF105 Adjustment Valve Flow Meter — Technical Specifications

This flow meter suits laboratory environments where precise flow measurement is essential. It also produces reliable results in industrial cooling lines and R&D projects. In addition, it is preferred for flow control in water treatment systems. Moreover, its compact design allows easy mounting in tight spaces.

The EF105 Adjustment Valve Flow Meter 1.2 – 12 L/h (Water) delivers a reliable solution for critical applications requiring precise flow control. ORFA Industrial has supplied professional equipment as an authorized distributor since 1985. We ship worldwide and provide technical support. Contact us for assistance and orders.
